[Course Design] NE555 Delay Circuit (Monostable)

Overview

Introduction: This course is designed from the perspective of digital electronics experimental course design - NE555 timer and its application

The starting signal is a negative pulse input from pin 2. When no trigger signal is added, pin 3 outputs low power.

Voltage; after the negative pulse is triggered, pin 3 outputs high potential and automatically recovers after time t.

to low potential.

Principle: When the button is pressed,

Capacitor C3 discharges,

At the same time, pin 3 outputs high level. When C3 is discharged until the voltage of pin 7 reaches a certain level,

C3 starts charging, and pin 3 outputs low level . Pin 3 continues to output when the button is not pressed.

low level. The output high level time is related to the values of C3, R4 and R5.

Calculation formula: t = 0.693(R4+R5)*C3

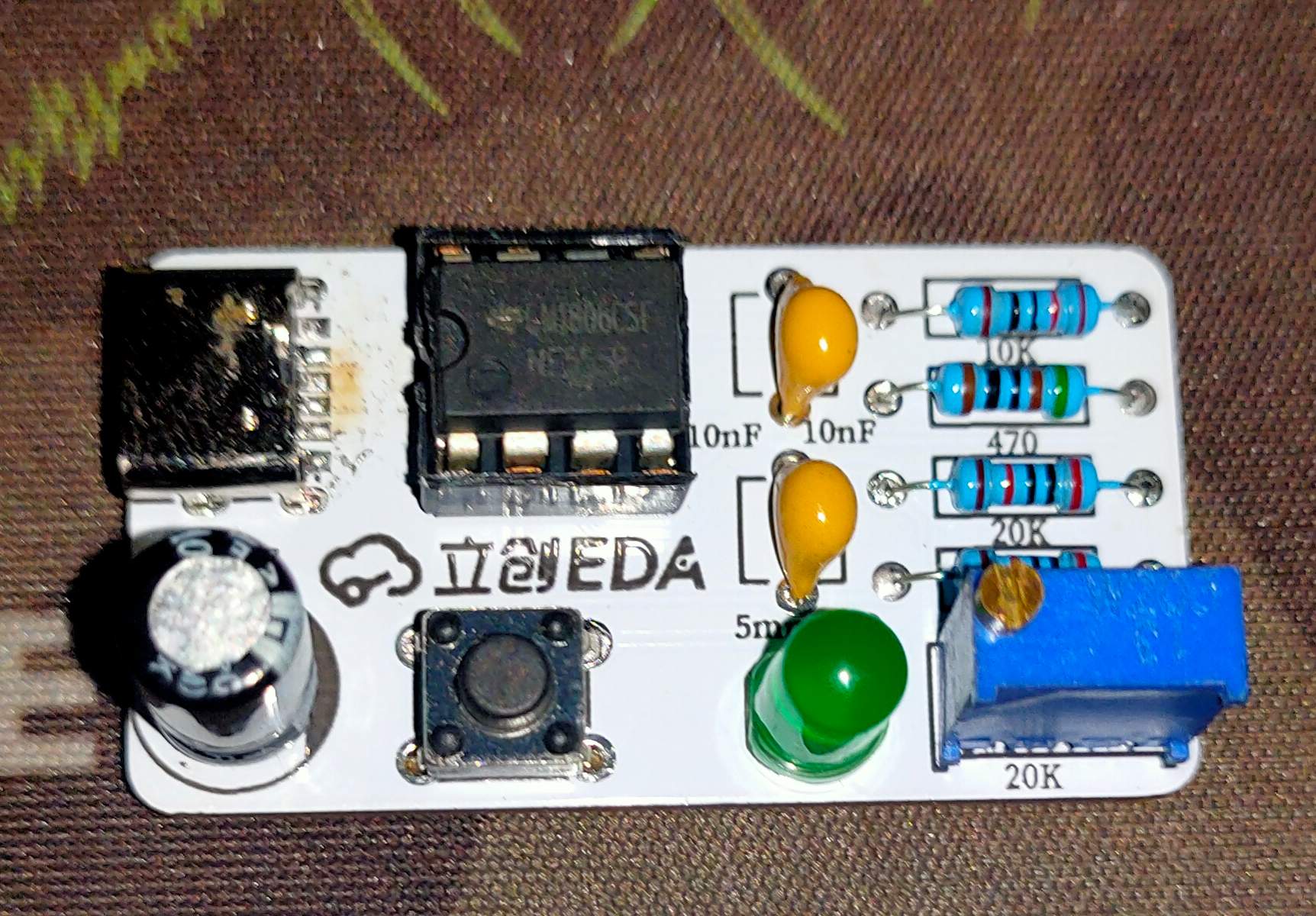

Physical map
