Power supply type - full bridge rectifier

Overview

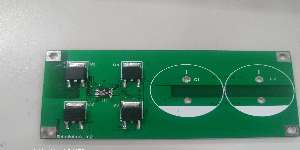

Electronic power supply modules such as auxiliary power supply, drive part, and circuits of past topics. This module is a synchronous full-bridge rectifier. Some circuits are copper-plated. You can view the ideal diode bridge controller LT4320 for 9V~72V systems in the editor. , which replaces the 4 diodes in the full-wave bridge rectifier with low-loss N-channel MOSFETs to significantly reduce power dissipation and increase available voltage. Improved power efficiency reduces power supply size by eliminating the need for bulky heat sinks. Additional margin is provided by eliminating the two diode voltage drops inherent in the diode bridge, which is particularly suitable for low voltage applications. MOSFET bridges enable rectifier designs with high space utilization and power efficiency compared to traditional alternatives. The operating frequency range of the controller is DC~600Hz.
