MT3608

Overview

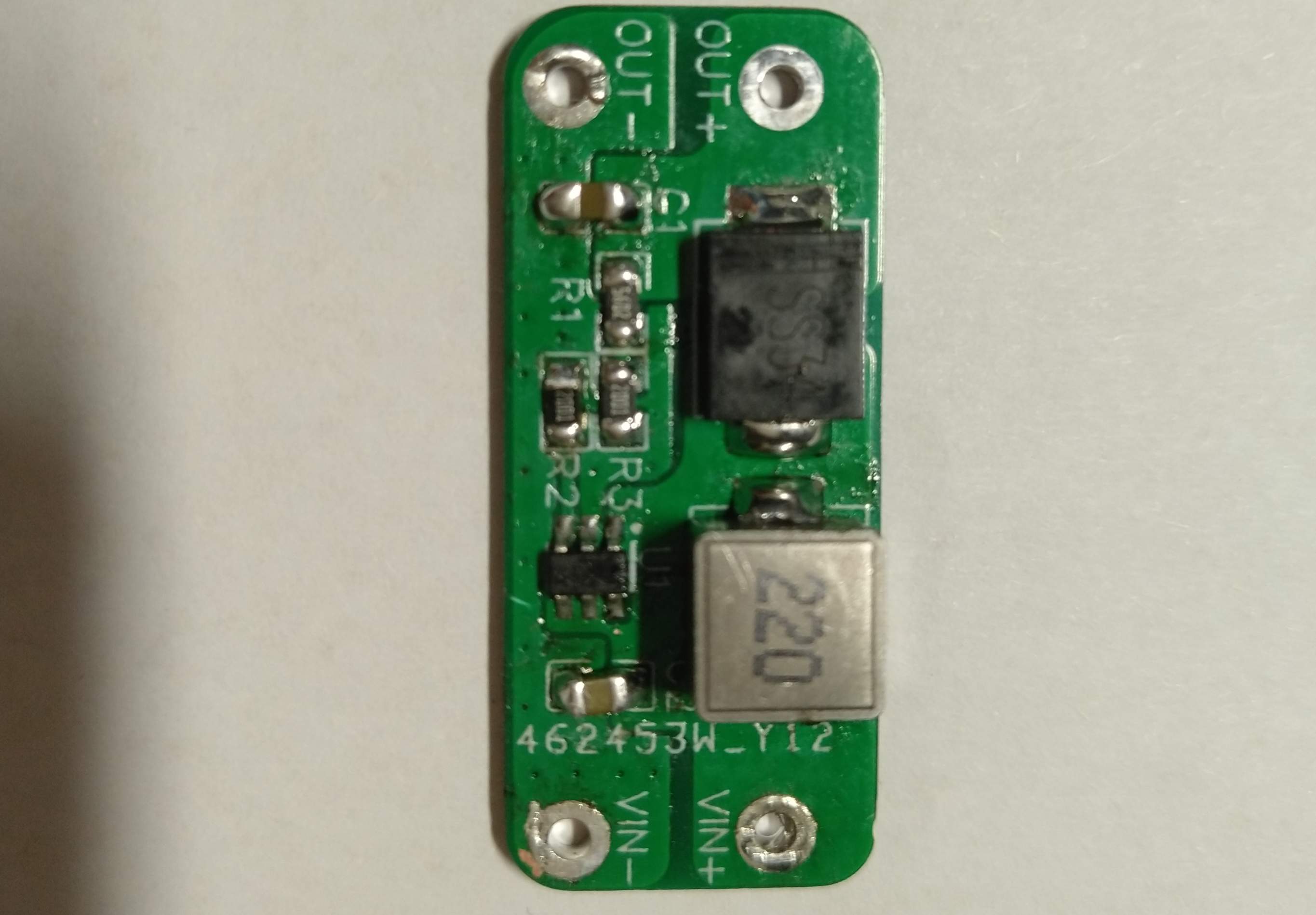

The boost module drawn using the MT3608 chip can output a voltage of 2-28V. The output voltage is greater than or equal to the input voltage. The maximum operating current is 2A. There is no adjustable resistor to adjust the voltage. The position of the chip resistor is directly reserved. Adjusting the output voltage only requires Just replace the resistor with the corresponding resistance, see the attachment for details.

Design Files
