This development board is used for learning Hangshun-HK32F103C8T6!
Floor project link: https://oshwhub.com/guo-0512/32f103c8t6-xue-xi-mu-ban !
Engineering development log:
2021-03-12 1:20
Complete the schematic and PCB drawing!
Waiting for the review of Lichuang EDA and Hangshun!
After passing the review, it will be tested!
(Welding test is expected after the final exam next week)
2021-03-12 11:33
At the request of Party A ( Creating Core Workshop ), the logo is added !
And increase the processing, hahaha!
2021-03-21 21:38
Solder components for testing!
Different from what I expected
The BOOT0 and BOOT1 levels of C8T6 can be switched through STC15W201S
Only use the MOOE button to realize different program download and running modes
The test process cannot download the program normally through this method!
But pull BOOT0 and BOOT1 low and high through normal Dupont lines .
The program can be burned normally !
The ASP function of this core board is not implemented! So you can only manually jump the wires and burn the program!
But everything else is normal! The video shows a MIDI music routine!
This project ends! There will be no further updates!
2D drawing-front view
2D image - back
3D image-front view
3D image - back

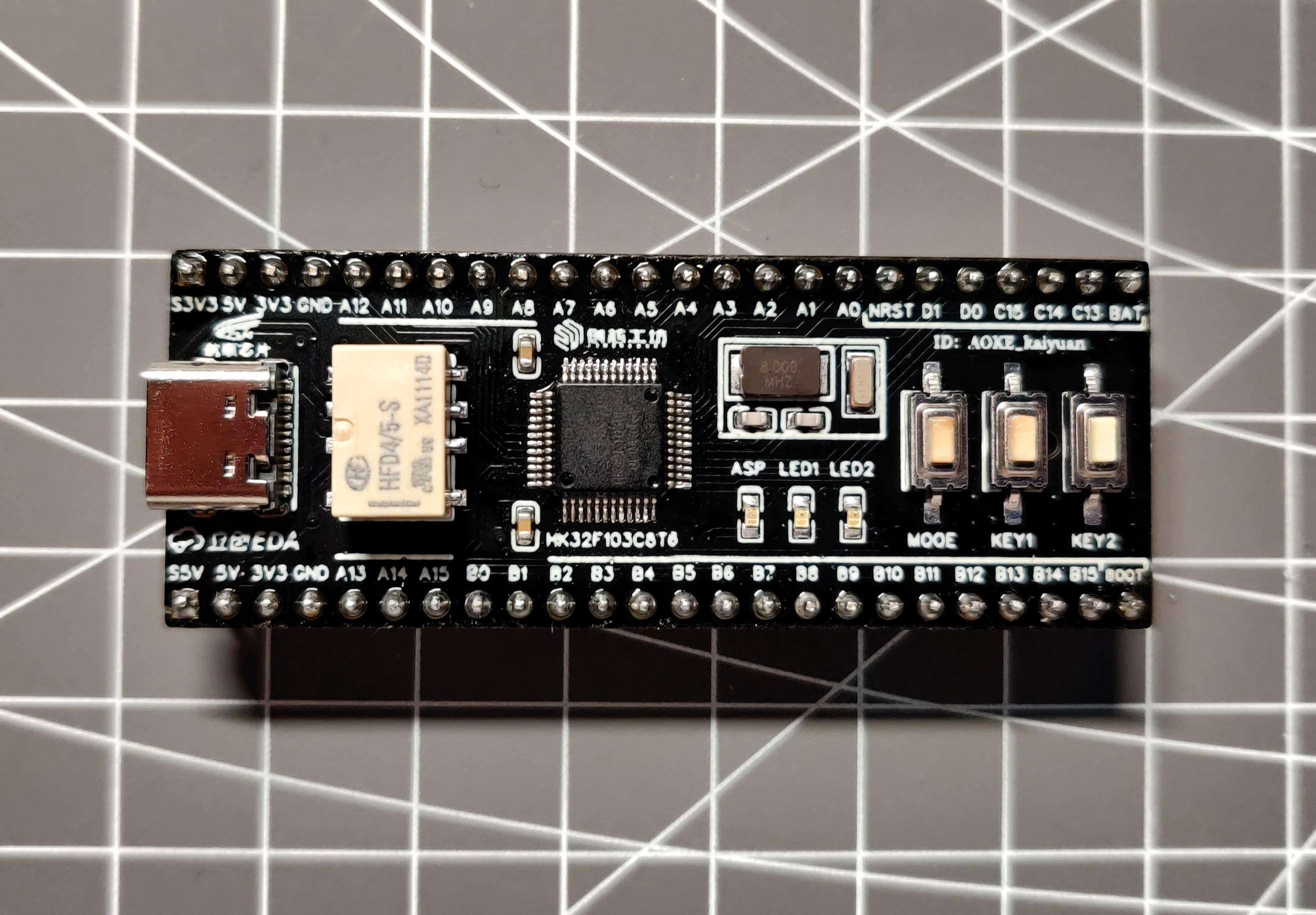

Actual picture - front
