LGT8F328P-MINI

Overview

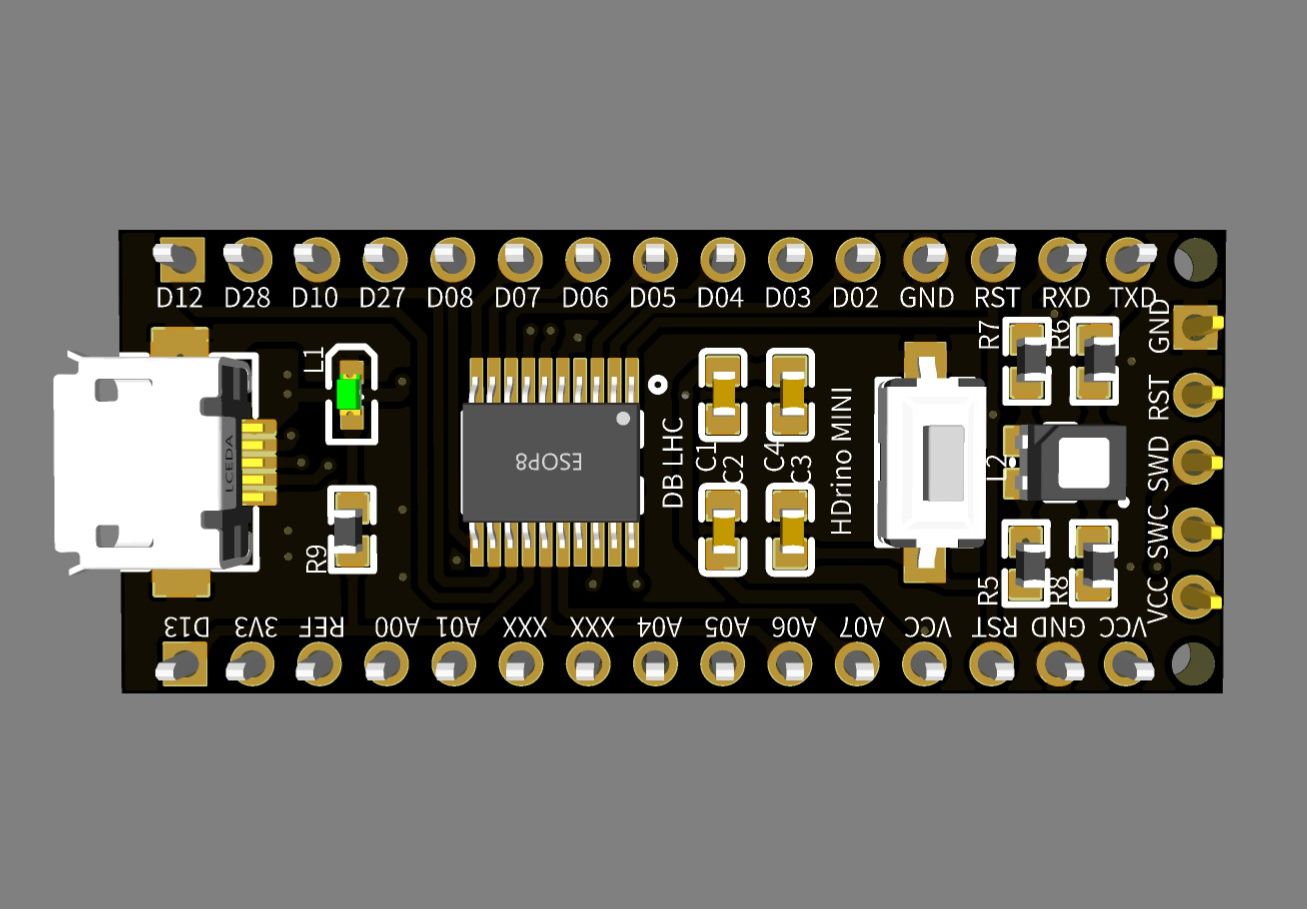

The smallest system version made using LGT8F328P-22, compatible with arduino nano and has the same pin and size.

L1 controls LED lights for user programming

L2 is a three-in-one status indicator light for power, TX, and RX pins. [The red light is the power indicator light, the green light and the blue light are the serial port indicator lights] [If not needed, L2, R6, R7, and R8 can not be welded]

R1 and R3 are short-circuited for USB serial port reception; R2 and R4 are short-circuited for USB SW mode [If it is not used only for power supply, a dedicated downloader and dedicated serial port module are required] You can also use the tail pin for system upgrade and maintenance.

The design purpose is to reduce the cost of the USB to serial port chip and is suitable for built-in use through the USB update program.
