5A linear regulated power module

Overview

product description

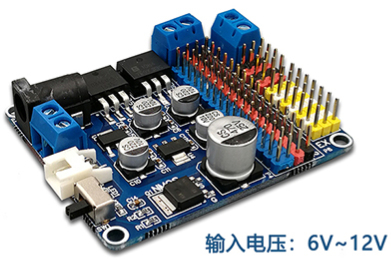

5A linear regulated power supply module -3.3V-5V. This module uses 4 LDOs as the main chip to realize voltage reduction from 6V to 12V. The output voltages are: VCC, 5V, 3V3. There are 17 groups of 5V and 3V3 in total. If it is not enough , you can also use expansion ports to add output ports. This module integrates an anti-reverse connection circuit to prevent the user from connecting the input power reversely and damaging the module.

Interface Description

Power output (5V 5A)
Power output (equal to input power voltage)
Power output (5V – 5A)
Power output (3.3V – 5A)
Power output (5V – 1A)
Power output (3.3V – 1A)
Extension ports
Anti-reverse connection MOS tube
switch
Power input interface various input modes 6.5~12V input

Pin function table

symbol	P1, P2, P3	P6, P7	5V-1, P5	3V3-1	5V-2	3V3-2	P8、EX
describe	Power input: 6V~12V	Power output: 6V~12V	Output: 5V/5A	Output: 3V3/5A	Output: 5V/1A	Output: 3V3/1A	Pin header expansion port
