Hall sensor module-OH34N

Overview

product description

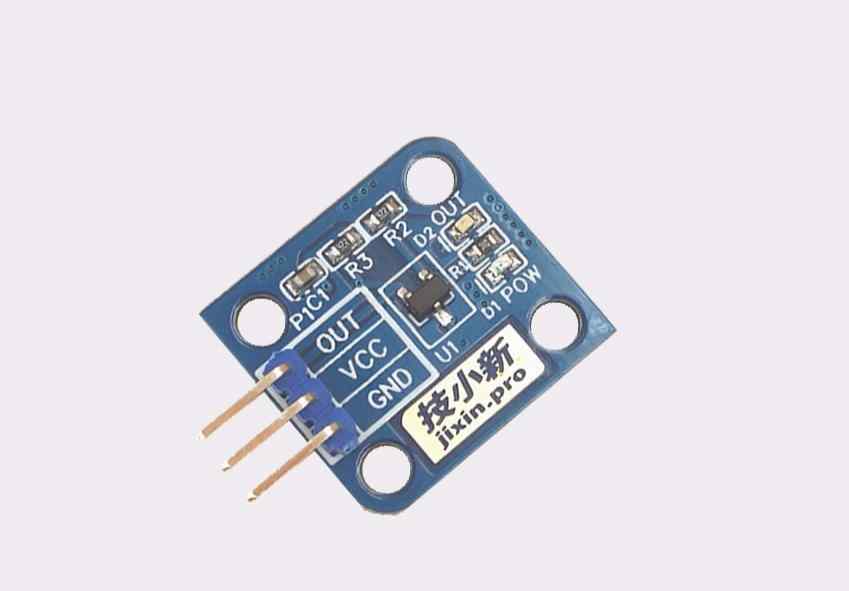

The Hall chip OH34N is used to convert the changing magnetic field signal into a digital level output. The module will output low level when the S pole magnetic field is triggered.

As a non-contact switch, it is widely used in various situations such as position control, speed detection, flow detection, and product quantity detection on production lines.

Pin function table

symbol	GND	VCC	OUT
describe	power ground	Positive power input (3.5V-5.5V)	Digital signal output (S pole magnetic field, output low level)
