RS485 Modbus 4-way relay

Overview

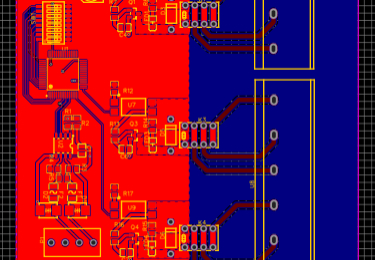

The microcontroller uses STC15W4K58S4 12V DC power input RS485 to control the DIP switch to set the remote station number, 0~f, the maximum relay current is 16A, the relay voltage is 220V, optocoupler isolation, LED light indication
