E-sports artifact: FPGA+STM32 development board

This design is an FPGA+STM32 development board, which can process high-speed signals and has 8-bit parallel high-speed AD/DA to meet the design needs of e-sports signal topics. (This is probably the board I’ve taken the longest to draw)

Notice! This project may not be used for any commercial purposes, please abide by the relevant open source agreements!

Onboard resources: cyclone IV EP4CE10E22C8N, STM32F103C8T6, AD9708, AD9280 and some other peripherals, leading to a total of 34 FPGA independent IO ports, 18 STM32 independent IO ports, reserved TFT, OLED screen interfaces.

Typical applications: FPGA processes high-speed signals, and STM32 processes display and communication, such as high-speed DDS, oscilloscopes, frequency meters, etc.

In terms of price: A development board like this from Moubao sells for 400-500 yuan. It only costs more than 70 yuan to buy the materials for welding by yourself, and it is less than 100 yuan, which is very cost-effective.

About expansion IO:  https://oshwhub.com/Kirito/alinx-fpga-kai-fa-ban-kuo-zhan-ban   The expansion board of this project is fully compatible with FPGA's IO expansion and can be used together.

PCB has passed DRC inspection and GERBER proofing can be directly saved or exported.

Welding video: https://www.bilibili.com/video/BV1d54y1X7b7/

CSDN connection: https://blog.csdn.net/W1561460589/article/details/106230153

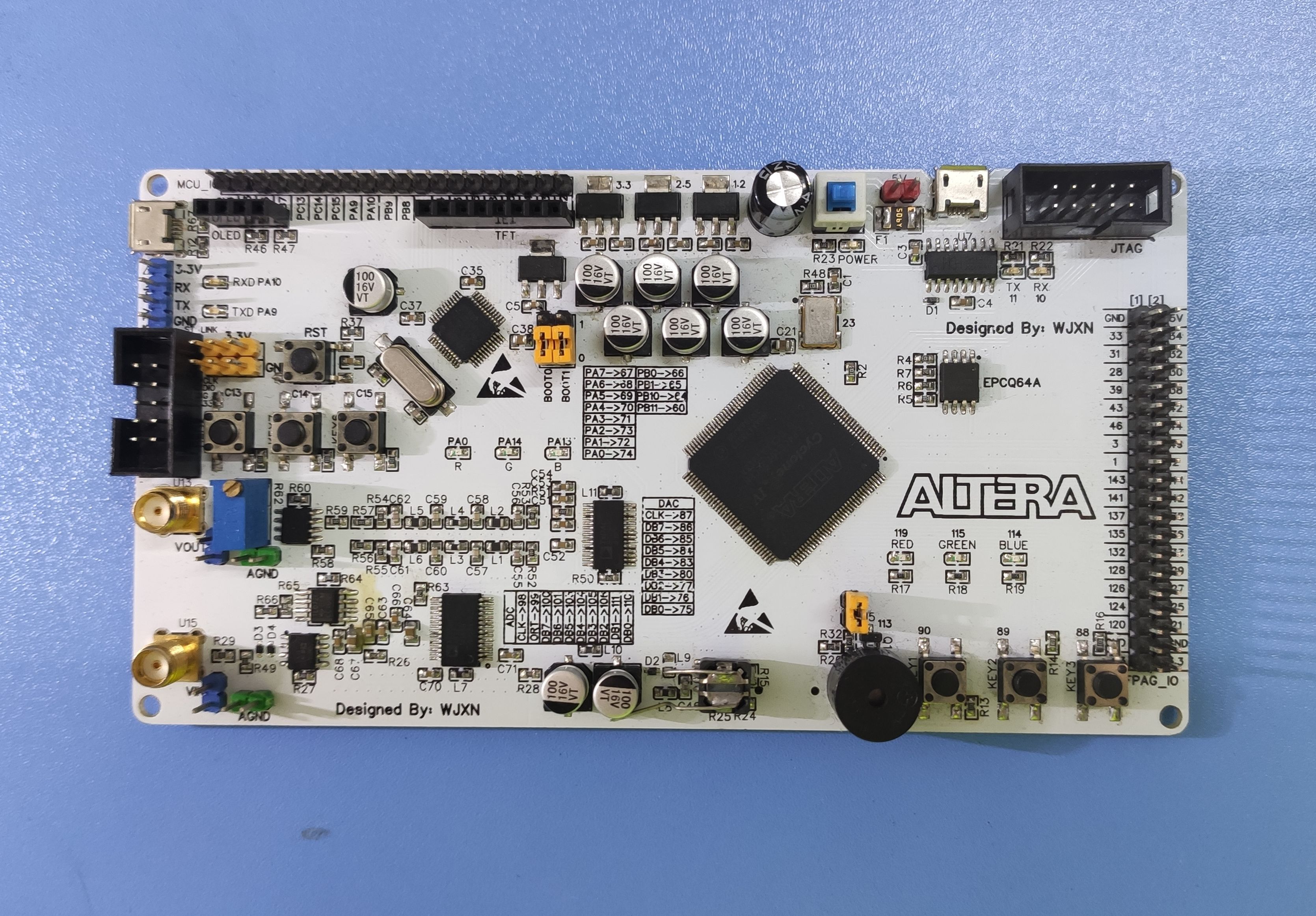

Finished product picture: front

Back: ~~~~

Seafood Market: Finished boards will be put on the shelves from time to time, so you can pay attention.
