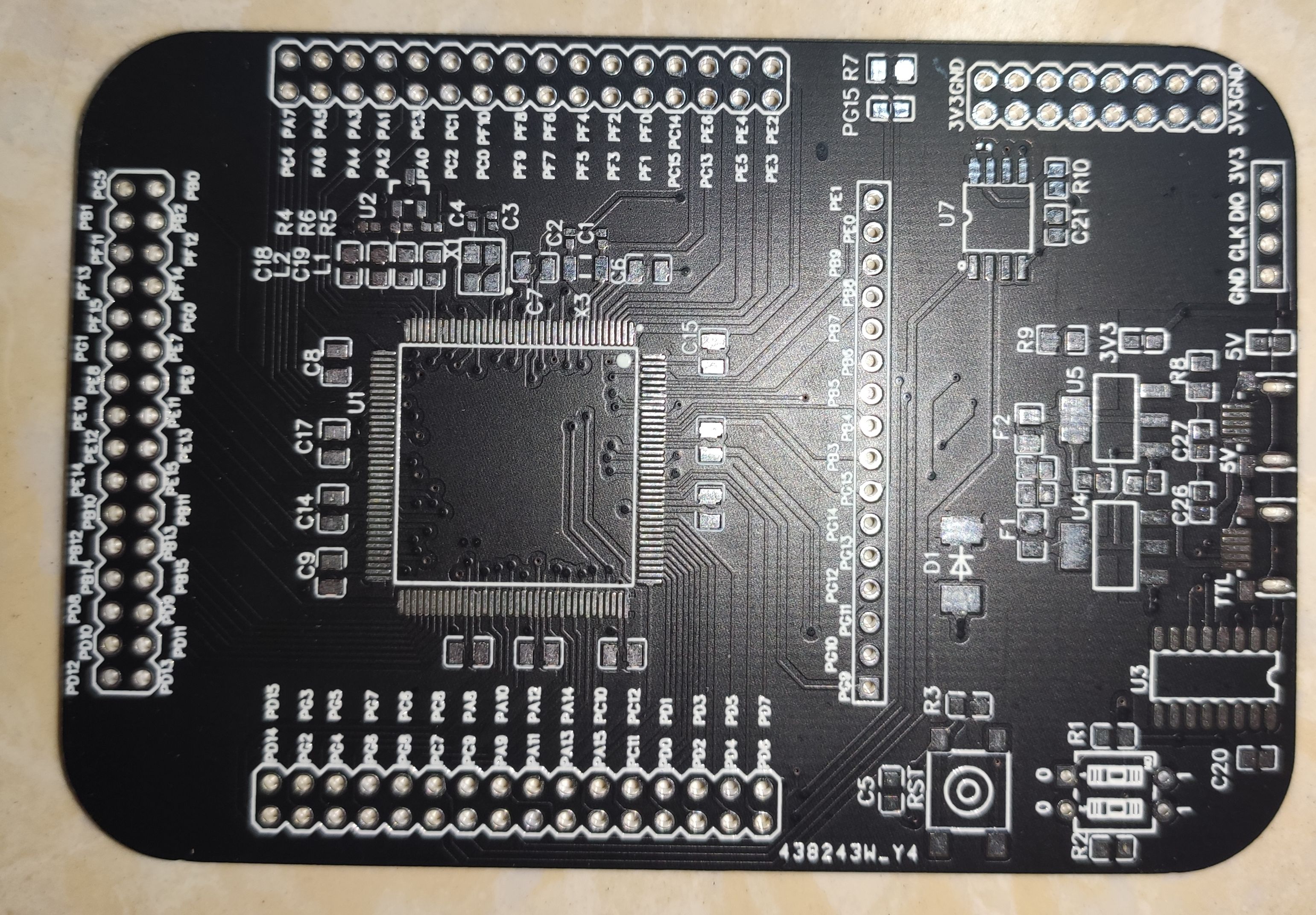

This design uses stm32f101zc chip, all pins are lead out, onboard 8m and 32.768k crystal oscillator, select boot through key switch, onboard flash chip, onboard ch340 chip, communicate and power supply with computer through mic usb port, reserve SWDIO and SWCLK pin are used for debugging the program.
