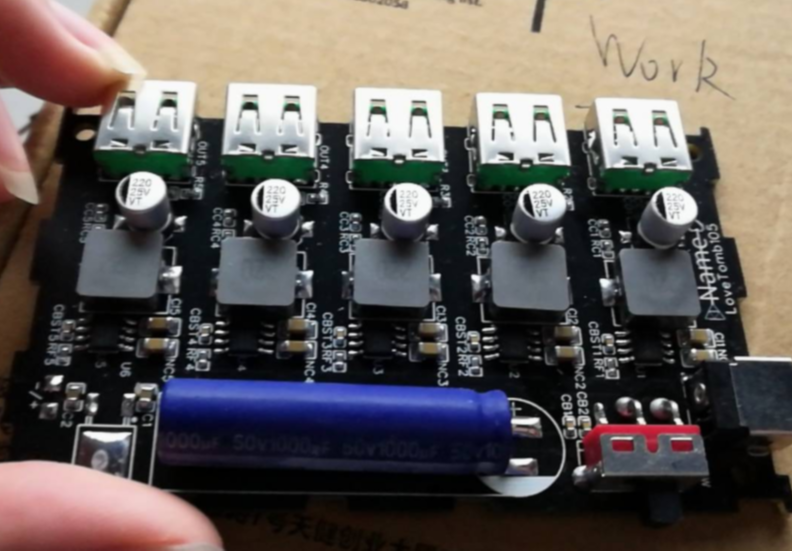

Ai Tomb Style No. 105-Five-way IP6505 fast charging dock

Overview

When the input voltage is within 35V, use the DC044 female socket to intervene;

There is a high current switch as the main switch,

The output voltage is between 3-12V, and the output current is within 4A;

Each independent output can output different fast charging protocols at the same time. It has a greater advantage for those backward designs with dual USB/triple USB outputs that use the same output circuit and cannot be fast charged at the same time;

Output power 100W maximum;
