【ART-Pi】ART-PI external expansion communication multi-interface adapter board

Overview

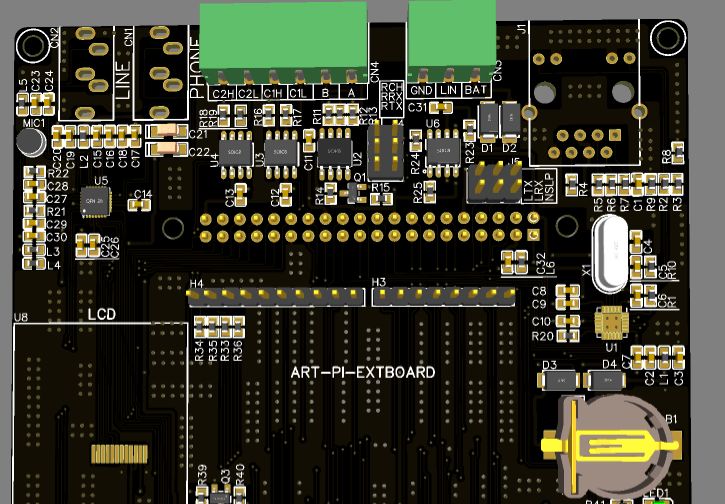

Design an ART-PI external expansion communication board with the following peripherals: 1. Externally expand the RS485 communication circuit to achieve external RS485 data communication. 2. Expand two CAN communication circuits to achieve communication with external CAN devices. 3. Externally expand the LIN communication circuit to achieve communication with external LIN devices. 4. Expand the network communication circuit to achieve communication with external wired networks. 5. An additional arduino interface circuit can be used for data interaction with the arduino peripheral module, improving the usability of the board expansion. 6. An additional 240*240 resolution display and buttons of the SPI protocol are used to set some communication parameters. 7. Add an external audio circuit.
