[Solicitation Order] Super beautiful personal clock weather station SD²

Overview

The esp12f module is a microprocessor with WiFi. Use it to create a super beautiful personal clock and weather station!

-------------------------------------------------- ---Dividing line--------------------------------------------- ------------------

Shell description

外壳内壳请配套使用

1.1外壳支持扩展板，板框文件未来放出
1.2外壳支持螺丝固定，但是不支持放扩展板

PCB请务必打1.2mm厚。

Firmware instructions

V1.2是老固件，功能较少~~~~
V1.3.4是网友编写的新固件，建议用这个

-------------------------------------------------- ---Dividing line--------------------------------------------- ------------------

Link to Station B: https://www.bilibili.com/video/BV1V64y1e72M?share_source=copy_web

https://www.bilibili.com/video/BV1Gf4y1H7Sj?share_source=copy_web

Discuss the Penguin Group~~~~: Don’t ask why there are so many groups, I don’t know the official group (full original information, thin board SD³): 811058758; 887171863 Netizen magic modification group (more firmware): 976993000; 761503009; 649498711

-------------------------------------------------- ---Dividing line--------------------------------------------- ------------------

Touch expansion board: https://oshwhub.com/MisakaBanBan/SDD_Touch

Charging expansion board: Personal Clock Weather Station SD² battery expansion board - Lichuang EDA open source hardware platform (oshwhub.com)

-------------------------------------------------- ---Dividing line--------------------------------------------- ------------------

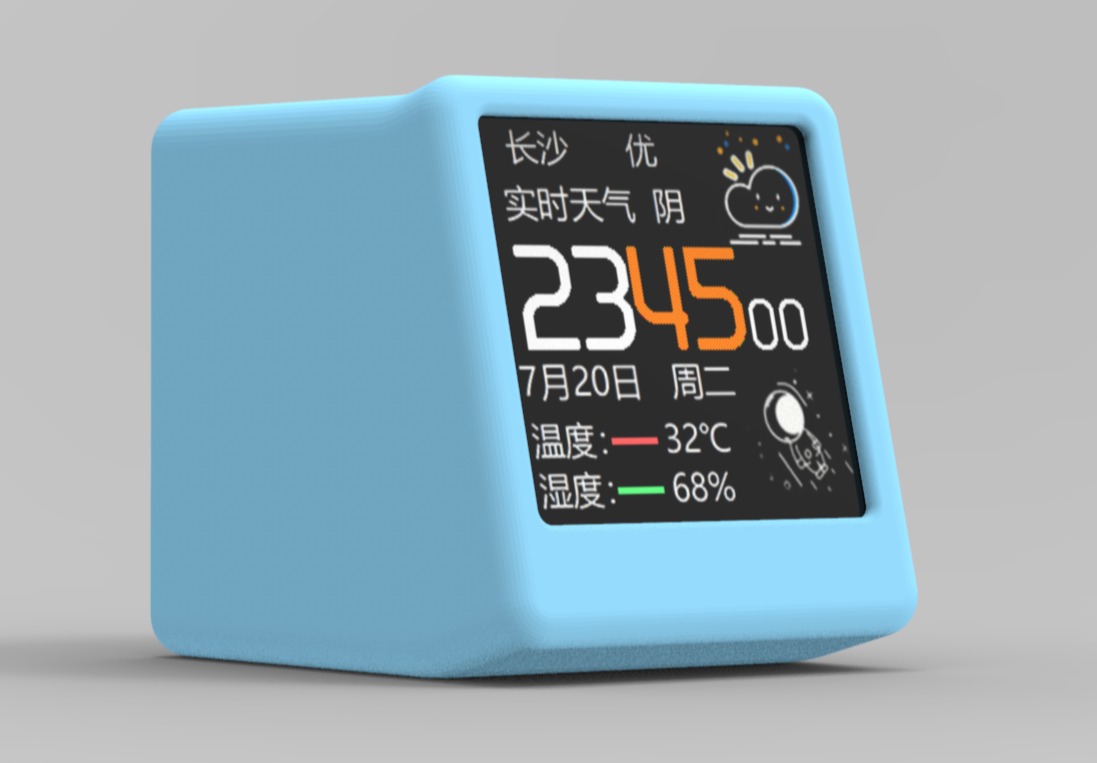

Rendering:
