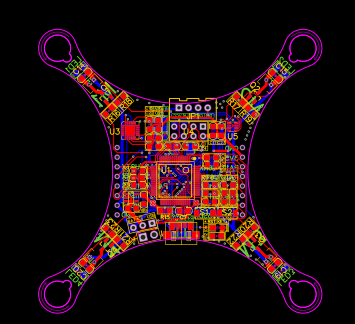

Small quadcopter based on STM32F411RC

Overview

A small quadcopter that uses STM32F411RC as the main control, MPU6050, BMP280 and other sensors, and nRF24L01 wireless communication method.

The selected motor is a 720 coreless motor, which supports 3.7V battery and USB power supply, and leads to two rows of debugging pins.

This project is an imported project and cannot be placed directly through the BOM of Lichuang Mall.
