通通

2_milk modified version

Overview

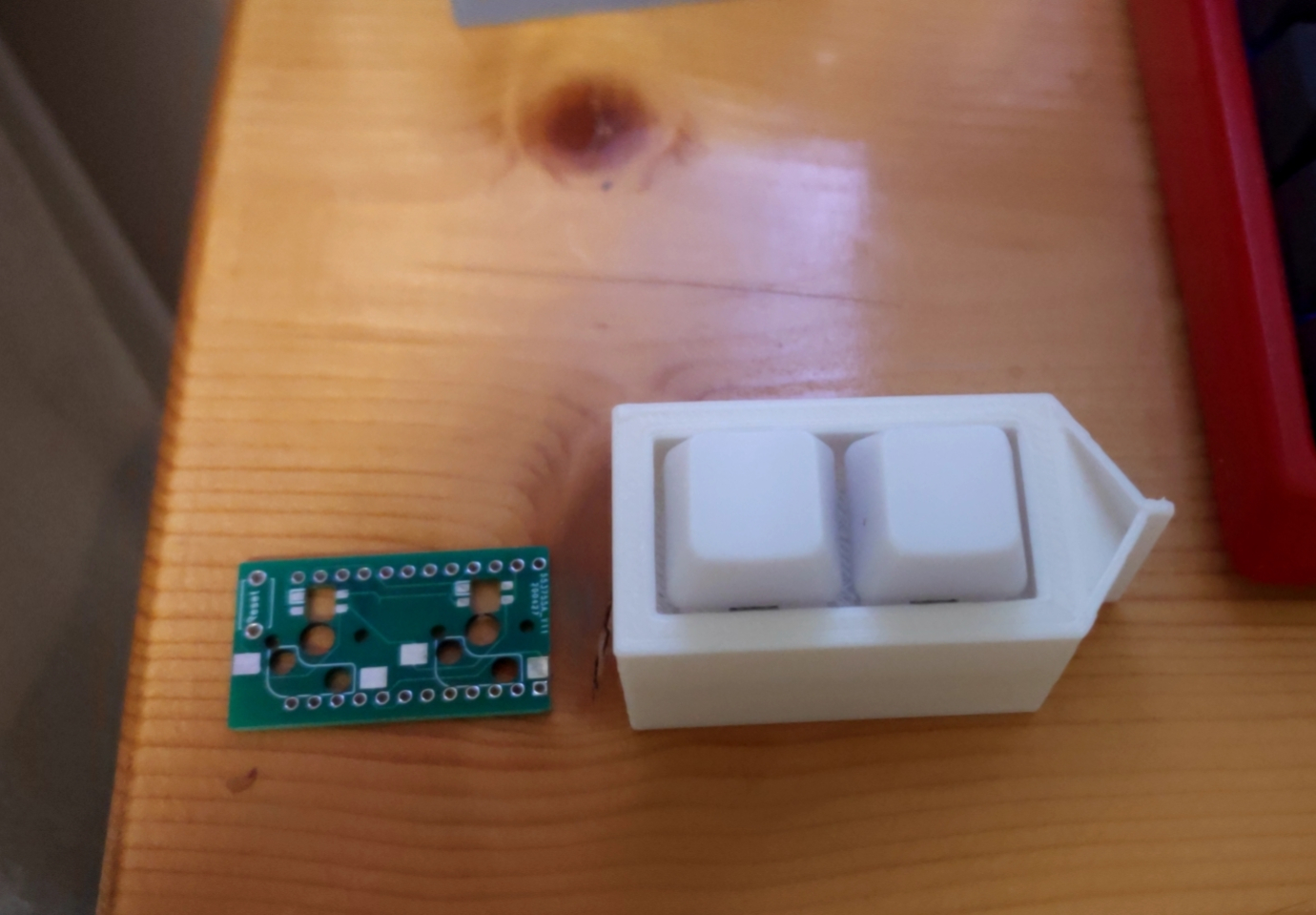

Adapted to the shell of the open source milk carton 2_milk keyboard, the original open source PCB has axis pins welded, the pins lead to the RGB bottom light, and the pins lead to the RESET reset. The version I modified uses a Kaihua hot-swappable axis seat with an sk6812mini button light embedded in the axis seat, cancels the pins of the RGB bottom light, and adds a RESET button to facilitate firmware flashing. WeChat picture_20200501223954.jpg
