MAME Mahjong Keyboard

Overview

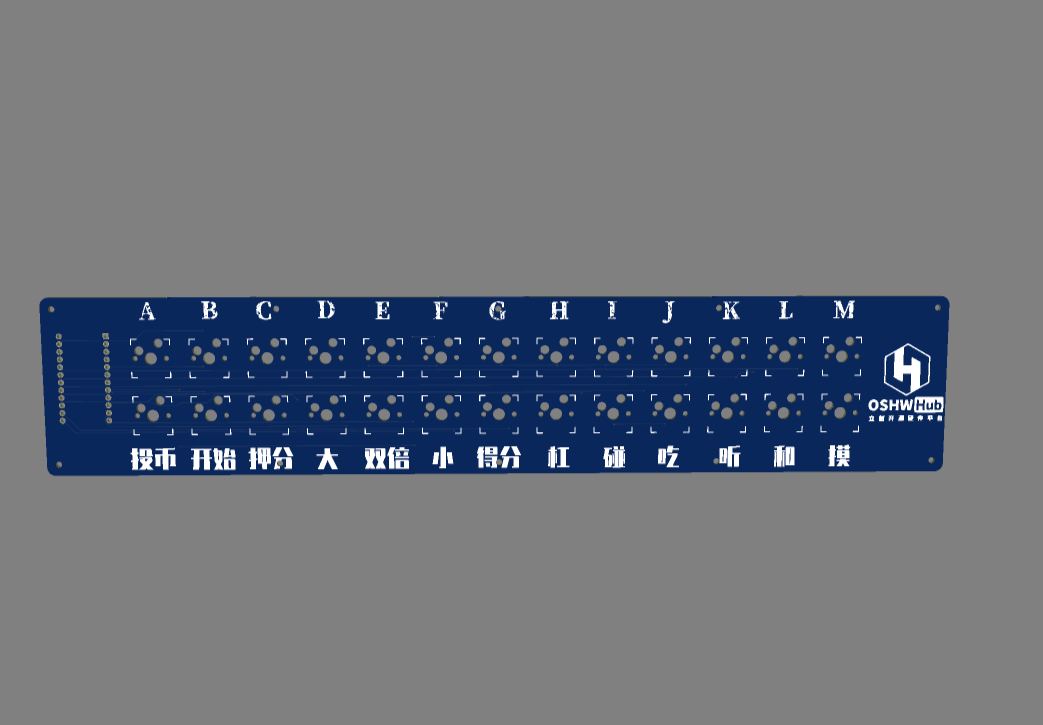

The keyboard is suitable for the simulator mame mahjong game. The axis base uses Kaihua MX hot-swappable axis base, with 8 RGB bottom lights. The main control uses 32U4 promicro. The attachment provides the gerber file and the keyboard's qmk firmware mame.hex. WeChat picture_20200502070016.png

Design Files
