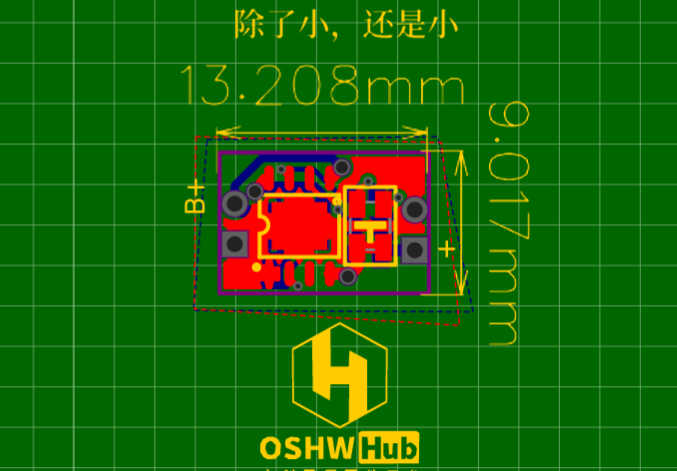

Possibly the smallest tp4056 1s1a charger

Overview

This module uses the TP4056x lithium battery charging chip, which is an improved version of Tuowei's old version TP4056 chip! With battery positive and negative polarity reverse polarity protection and input power supply positive and negative polarity reverse polarity protection. Its low external component count makes the TP4056X ideal for portable applications.
