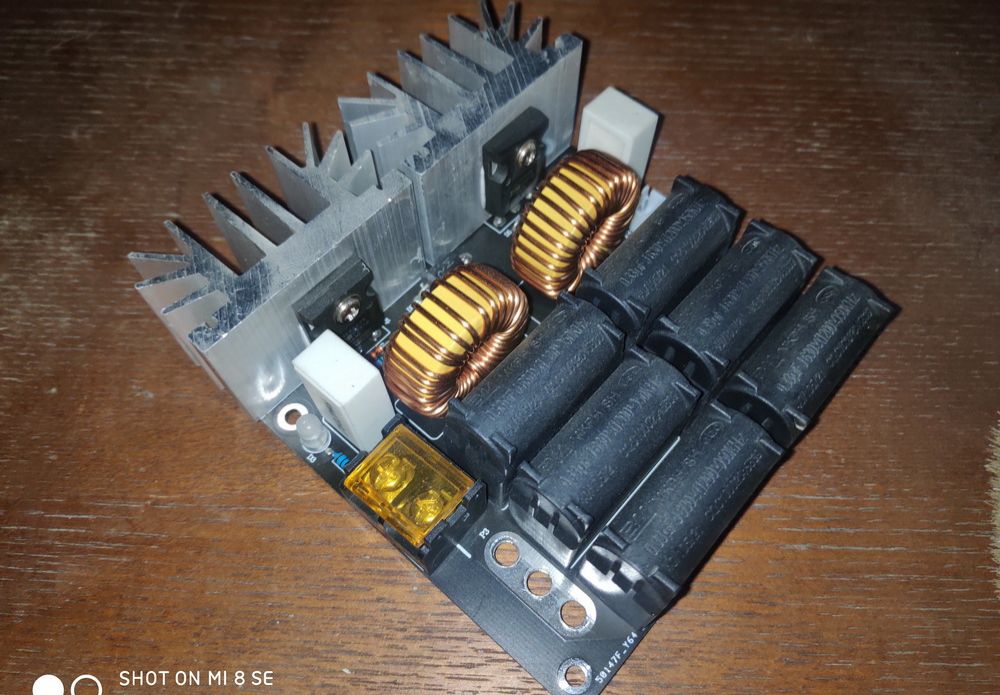

The schematic diagram is as follows:
Components list:
Q1, Q2: IRFP260 2
L1, L2: 100uH 15A 2
D1, D2: FR307 2
D4, D5: 1N4742 2
R4, R5: 10K 0.25W 2
R2, R3: 470R to 750R, depending on the actual situation Adjust resistance value 2
Resonant capacitor: 1200V 0.33uf 6
R1: 10K 0.25W 1
LED: 5mm any color 1
P2, P1: 6 M4 copper pillars
The open source agreement about this document: use it as you like, produce it as you like, sell it as you like.
