toothache

mini-clamp

Overview

#### Project Description

The burning clips on Taobao are relatively expensive, and most of them have a pitch of 2.54mm. I personally prefer to use mini burning clips with a pitch of 1.27mm.

#### Historical version of burning folder

mini-clamp-socket ----socket version (no direct soldering wire)

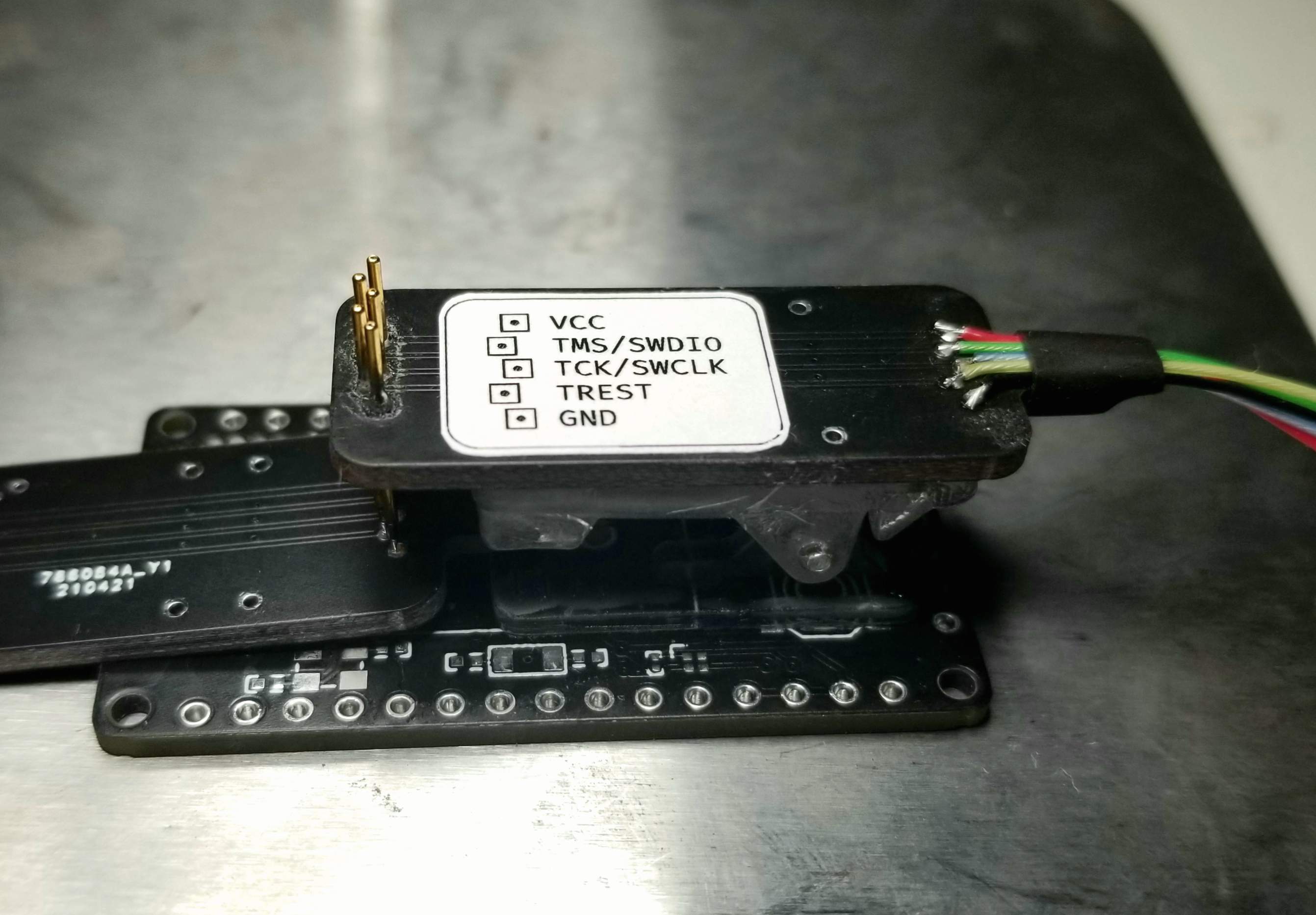

mini-clamp----7-line full-featured version (SWD, JTAG)

mini-clamp----5-wire simplified version

It is recommended to use the 5-wire simplified version

Design Files

All reference designs on this site are sourced from major semiconductor manufacturers or collected online for learning and research. The copyright belongs to the semiconductor manufacturer or the original author. If you believe that the reference design of this site infringes upon your relevant rights and interests, please send us a rights notice. As a neutral platform service provider, we will take measures to delete the relevant content in accordance with relevant laws after receiving the relevant notice from the rights holder. Please send relevant notifications to email: bbs_service@eeworld.com.cn.

It is your responsibility to test the circuit yourself and determine its suitability for you. EEWorld will not be liable for direct, indirect, special, incidental, consequential or punitive damages arising from any cause or anything connected to any reference design used.
