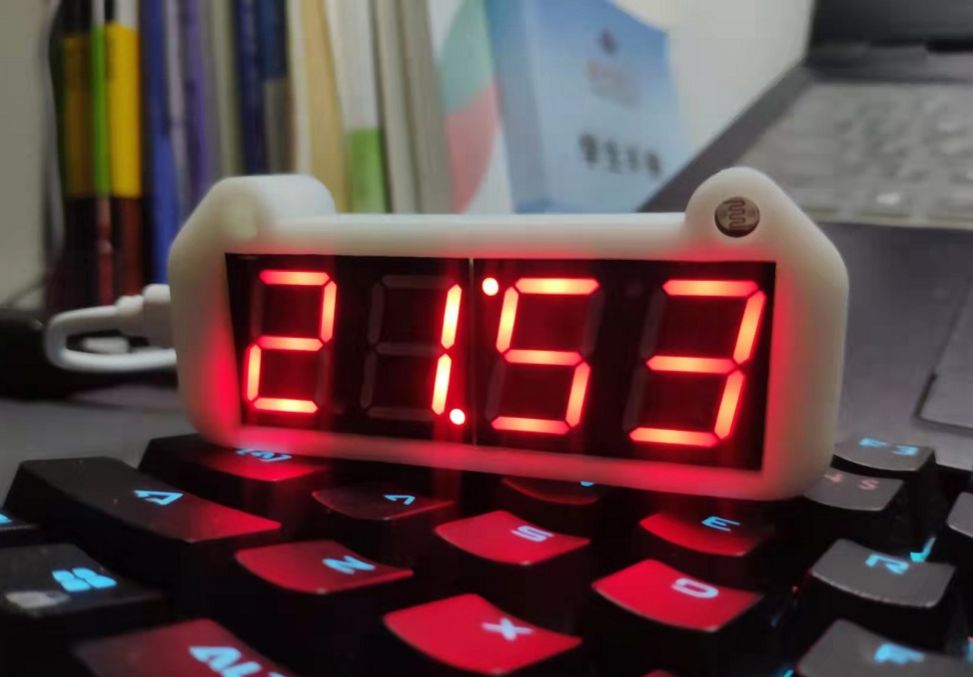

cat ear clock

Overview

Using STC8G1K08-16Pin microcontroller

74HC595 needs
data, latch, and display control.
DS18B20 needs
data .
Photosensitivity requires
left photosensitivity. Right photosensitive
button setting requires
button 1, button 2, and button 3.
A total of io11
digital tubes are required. Use two digits of 0.8. One positive and one negative can be installed. Directly eliminate the requirement for redundant control bits
