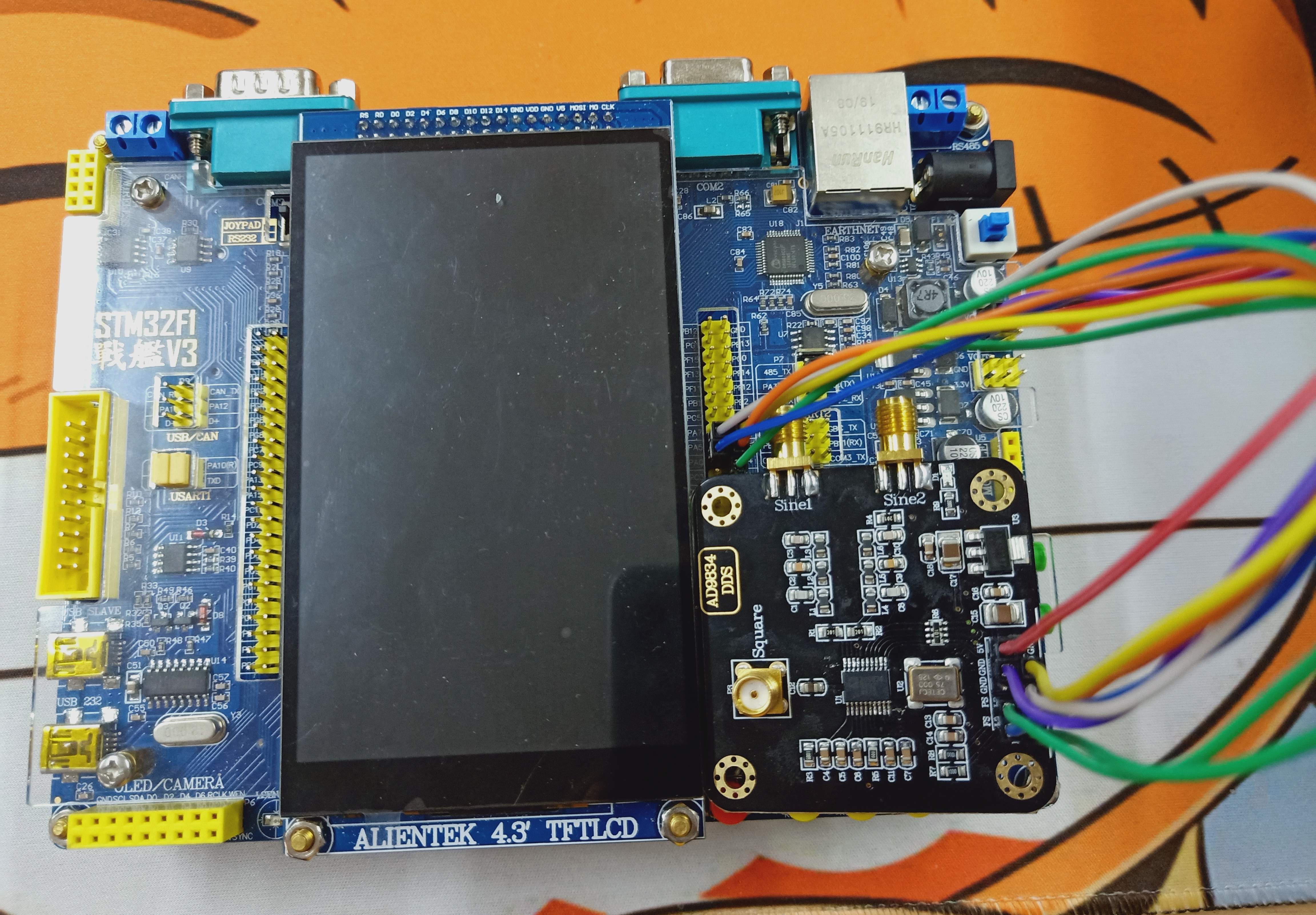

[Guangxi Normal University Competition] Arbitrary waveform generator based on STM32

Overview

This project won the second prize in the 2020 Guangxi Normal University Electronic Design Competition.

Team members: Ou Liangjie, Hu Huixiang, Zhang Junyu Instructor: Mr. Su Jiande

Topic: Arbitrary Waveform Generator

one

,Task

design production

one

An arbitrary waveform generator that can generate sine waves, square waves, and triangle waves.

The waveform generator can

one

Ensure constant voltage output within a certain range.

2. Requirements

1. Basic requirements

(1) The waveform generator can generate three periodic signals: sine wave, square wave, and triangle wave;

(2) The frequency range of the output waveform is 100Hz

100kHz; frequency adjustable, frequency step interval ≤

100Hz;

(3) Under 50Ω load condition, the output voltage peak

Maximum peak value ≥ 2V;

(4) Function to display the type, repetition frequency (period) and amplitude of the output waveform;

(5) There is no obvious distortion when observed with an oscilloscope.

play part

(1) The frequency range of sinusoidal signals is extended to 1Hz

10MHz, enter

one

Step-up square wave and triangle wave output

output frequency.

(2) With output frequency and frequency step setting functions;

(3) Under 50Ω load condition, the output voltage peak

Maximum peak value ≥5V;

(4) It has the function of displaying waveform type, frequency and amplitude;

(5) Can output at least

one

an arbitrary waveform.

3. Description

1. The basic frequency adjustment method can be analog or digital to give full play to partial frequency adjustment.

Can only be numeric.

2. To use some output frequencies and frequency steps, you need to use the keyboard to set them.

3. The type of arbitrary waveform can be selected and the frequency can be changed.

Design Files

All reference designs on this site are sourced from major semiconductor manufacturers or collected online for learning and research. The copyright belongs to the semiconductor manufacturer or the original author. If you believe that the reference design of this site infringes upon your relevant rights and interests, please send us a rights notice. As a neutral platform service provider, we will take measures to delete the relevant content in accordance with relevant laws after receiving the relevant notice from the rights holder. Please send relevant notifications to email: bbs_service@eeworld.com.cn.

It is your responsibility to test the circuit yourself and determine its suitability for you. EEWorld will not be liable for direct, indirect, special, incidental, consequential or punitive damages arising from any cause or anything connected to any reference design used.
