DAPLink production tutorial

First burn the bootloader

• Use J-Flash to program "stm32f103xb_bl_crc.hex" in the firmware

Determine the target board model. Here we take f103 as an example.

• Press the button on DAPLINK and plug in the USB until a USB flash drive named MAINTENANCE is recognized.
• Then copy "stm32f103xb_stm32f103rb_if.hex" to the USB flash drive.
• Then plug the USB back in and you can use it normally.

SWO functional test

• For SWO testing, please use "STM32F103C8-SWO test program"
• For related settings, please refer to the screenshots in the project directory.

CDC test

• First short RX and TX
• Open the serial port assistant
• Whatever you send and receive means it's normal.

Remark

• How to use J-Flas
• For specific usage methods, please refer to the "DAPLink User Manual" in the folder.
• The DAPLink user manual is downloaded from the Internet. There are some differences between DAPLink and STM32 with LPC as the core. Please distinguish as appropriate.
• The software is ARM’s official open source program link


Empty board

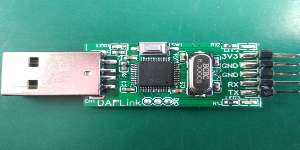

after welding
