sigma

MAX3051EKA dual-channel CAN STM32F4 controller

Overview

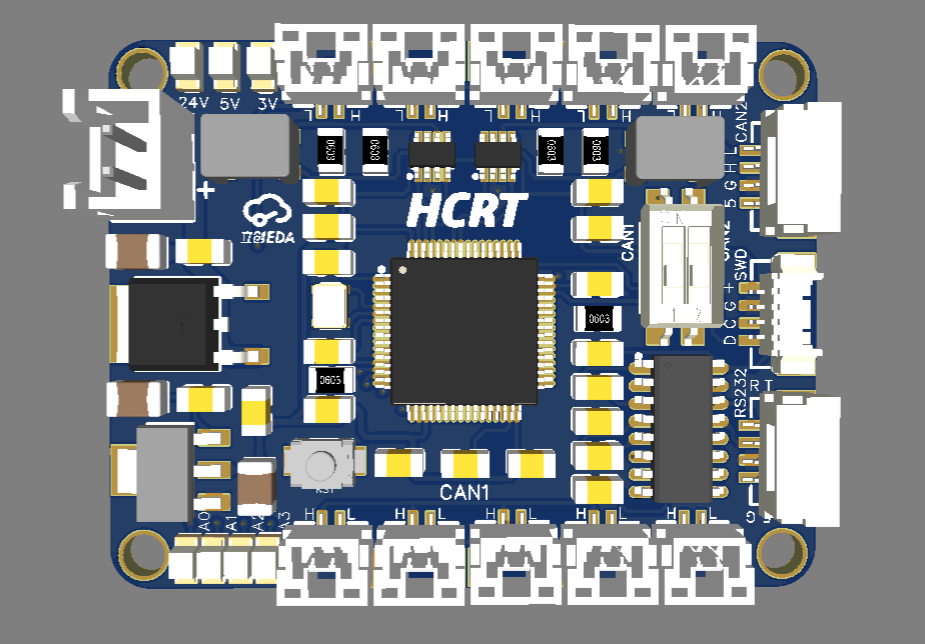

This project uses STM32F405 as the main control to connect two MAX3051EKA CAN communication chips.
CAN1 and CAN2 of F405 are used, and each CAN chip has automotive industrial grade common mode inductor filtering.
This project contains all necessary peripheral circuits of STM32F405 and integrates 4 LED lights
CAN1 leads to 3 GH1.25J interfaces CAN2 leads to 8 GH1.25 interfaces
Integrated SP2323 RS232 to TTL chip and leads to the corresponding interface
PCB board proofing will be carried out later, and photos of empty PCB boards, photos of finished welding products, and demonstration video tutorials will be updated.
