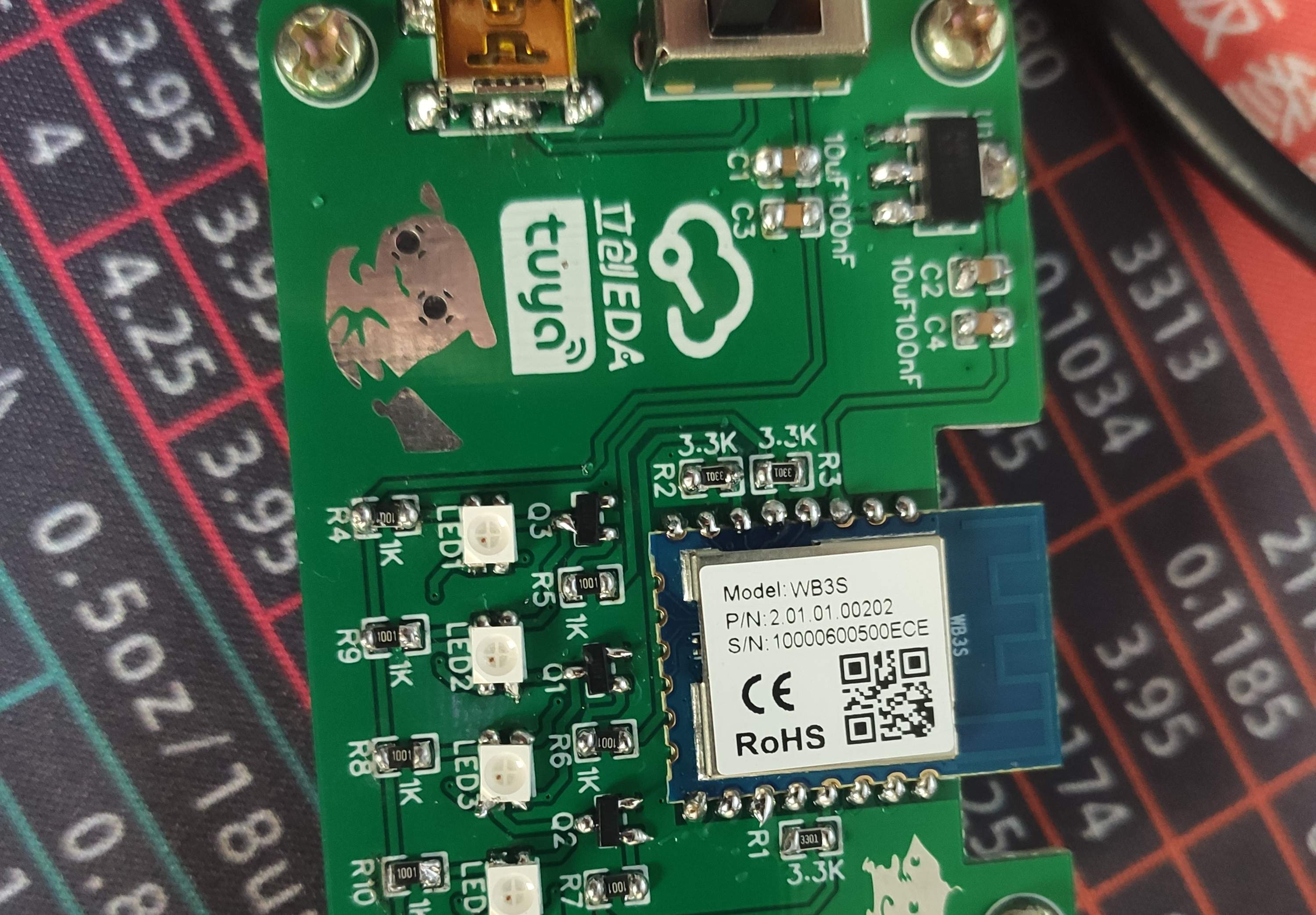

The module development based on Tuya Smart WB3S is also based on the development of the Lichuang EDA platform. The lighting can be controlled through the mobile APP, which can improve life comfort and personal pleasure.
The principle is relatively simple, that is, WB3S outputs three PWM channels and then drives the N-channel MOS tube to form a conduction loop, and finally allows the RGB lamp beads to emit the desired light. I made a mistake and my thinking was limited. I should have arranged RGB for Pikachu (artificially turning him into light), hehe!
