Gregory Davill is a technical expert from Australia who is very famous and active in the field of open source hardware. In December 2020, he insisted on designing a circuit board every day, using KiCad to complete the circuit design and PCB layout and routing. This is the adventure-calendar-of-circuits-2020 project.

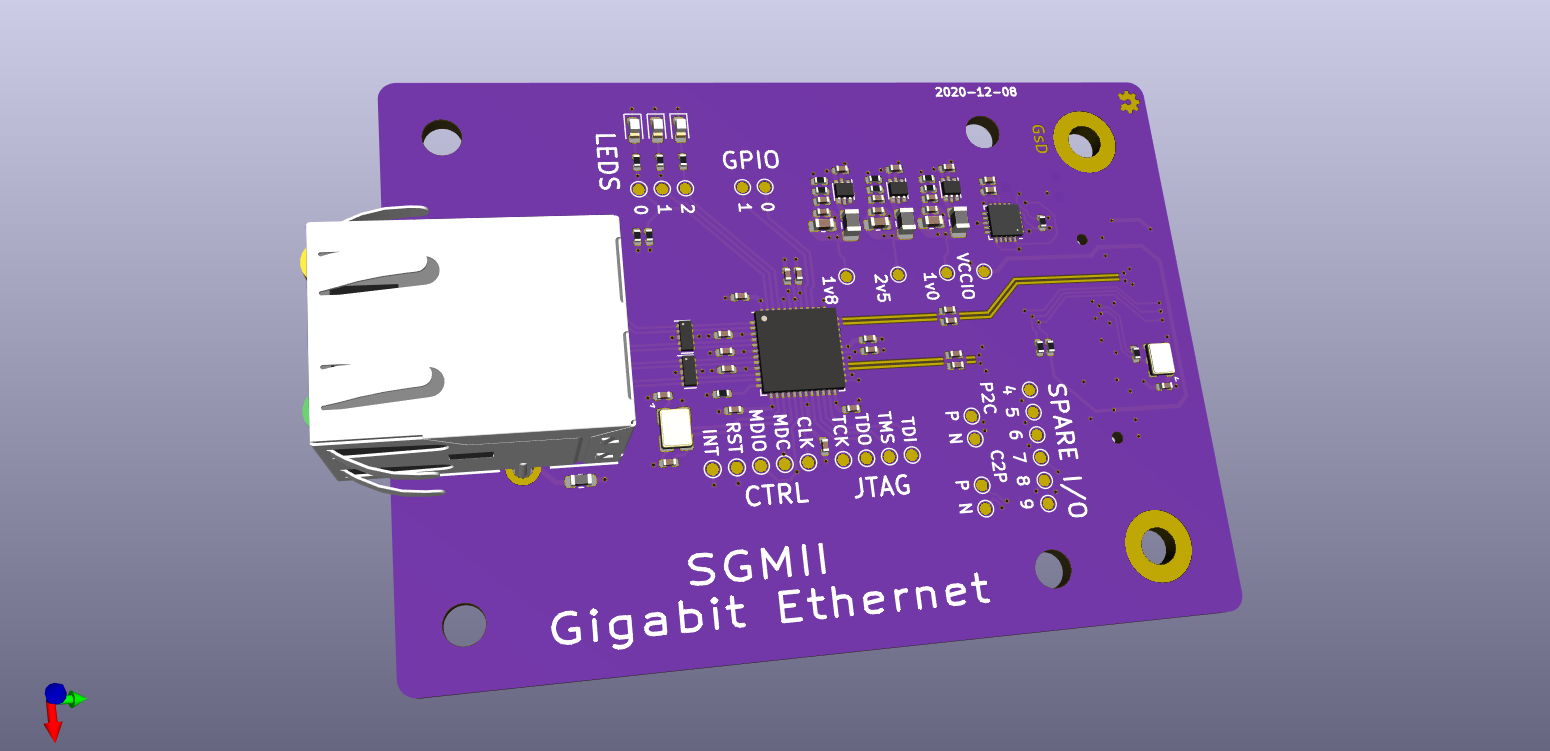

SYZYGY is an FPGA extension standard for medium to high speed interfaces. This design is a breakout board for SGMII Gigabit Ethernet PHY DP83867C. It connects to SERDES via a SYZYGY-TXR connector to test and evaluate Ethernet over 1.25Gbps serial channels. 2 channels are used and CDR is required on the RX path. Compared to RGMII, SGMII significantly reduces the number of signals required for routing.
