Introduction: The world's simplest light strip product, you can do it with your hands.
Function: The color, brightness, timing and other functions of the RGB three-way lantern can be adjusted through the APP (smart Tuya 0 code development). Make it beautiful and give it to your friends or girlfriend.
Circuit structure: An AMS1117 step-down module reduces the 5V voltage to 3.3V to power the system; the networking module is a WB3L, WIFI&BLE dual-protocol module, which can be connected to the mobile phone to adjust the light strip through the APP.
picture:

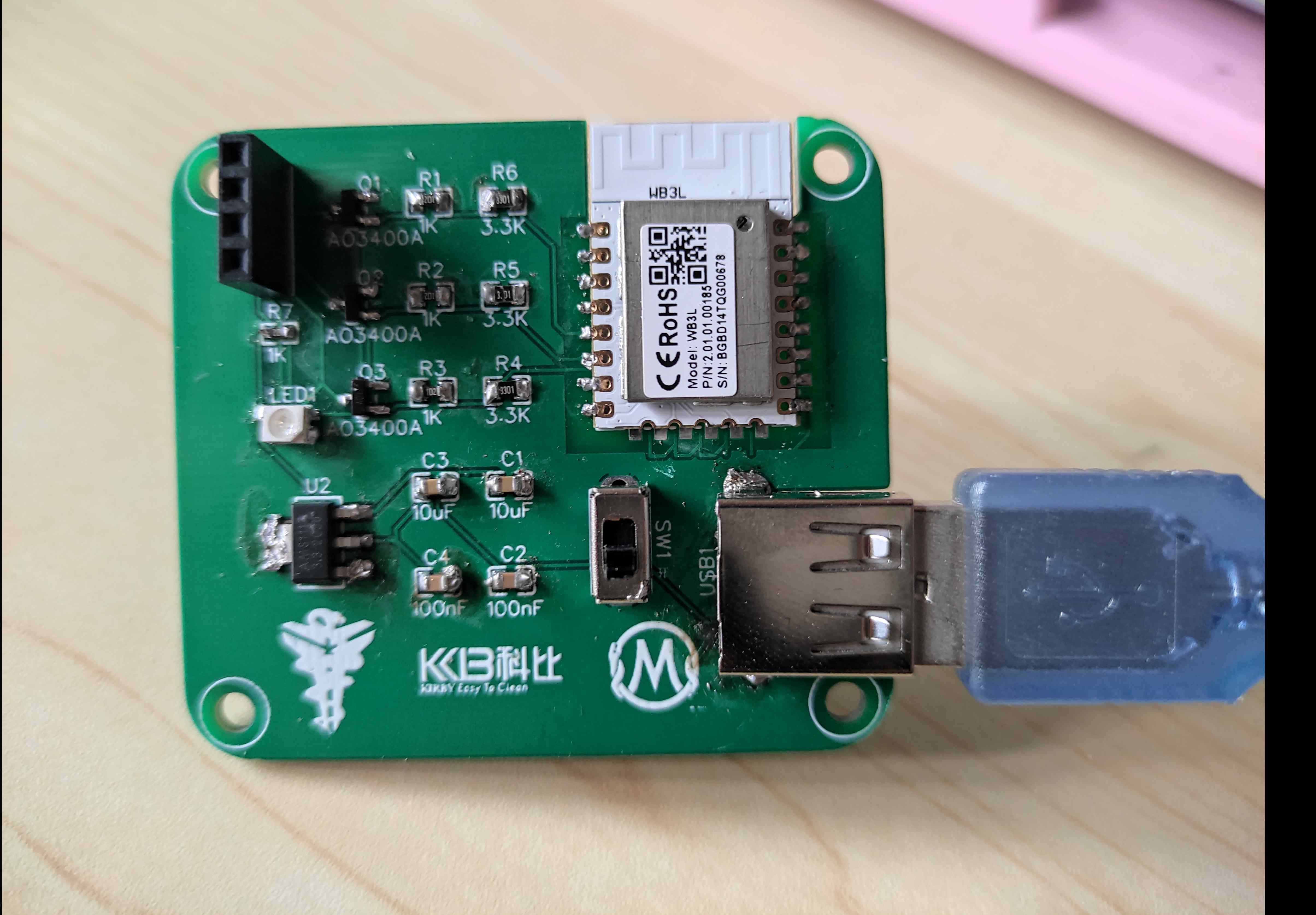

The board is small and has very few components.
