ThunderScope: Open source software-defined oscilloscope (schematics, source code, etc.)

Overview

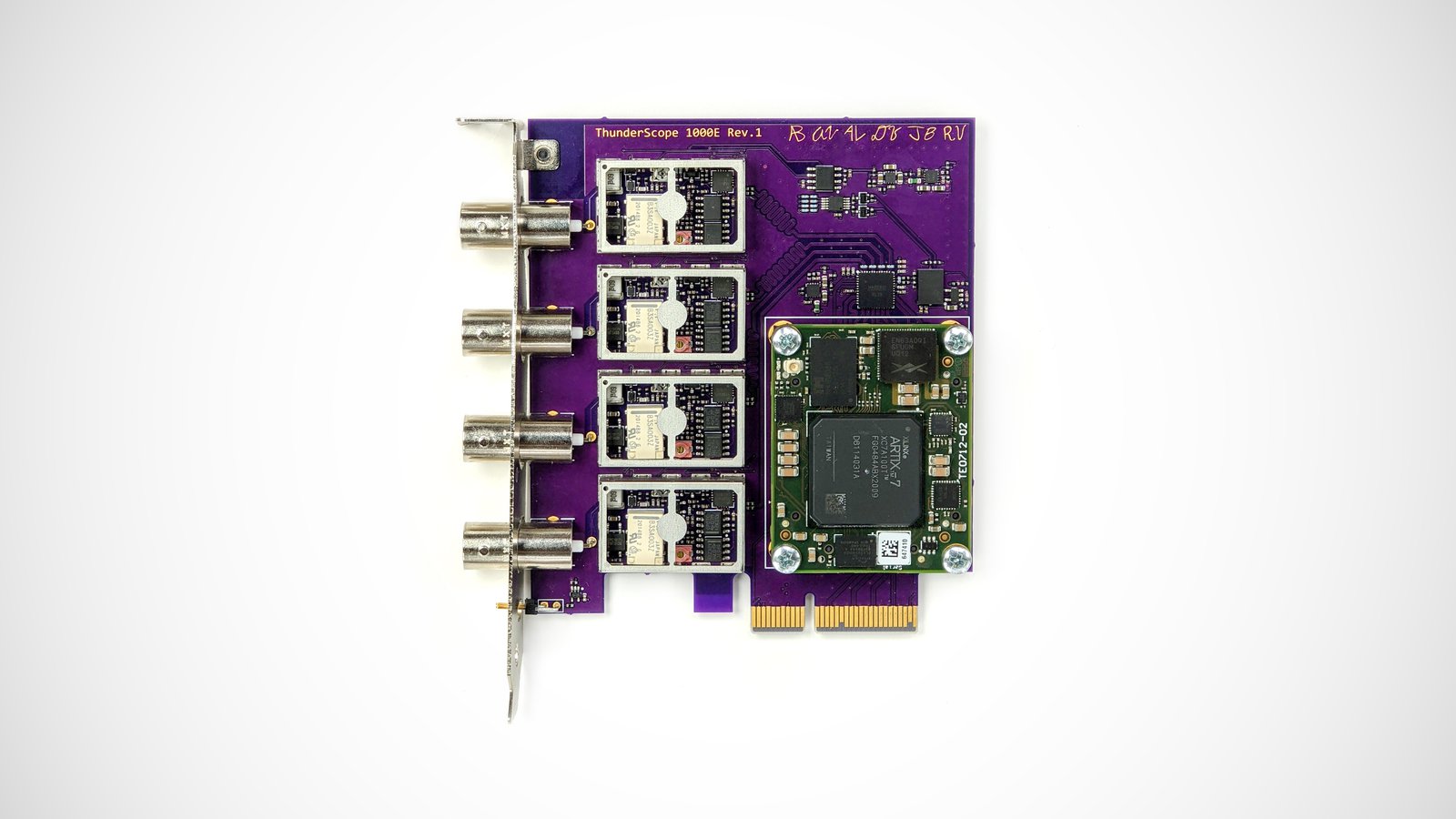

ThunderScope is the first oscilloscope designed specifically for Thunderbolt, allowing live sample data to be streamed to your computer at over 1 GB/s. This design eliminates all limitations of traditional oscilloscopes by leveraging the powerful processing capabilities of modern devices.

Measurements are made fast and easy, with cramped UIs replaced by multi-window layouts and support for modern accessibility features. Sample memory was increased from megabytes to gigabytes, and the fixed list of protocols and trigger types was replaced by an ever-expanding repo.

ThunderScope is also open source, so you have complete control over your data from the moment you sample it. You can easily add your own custom features and benefit from new features built by the community.
