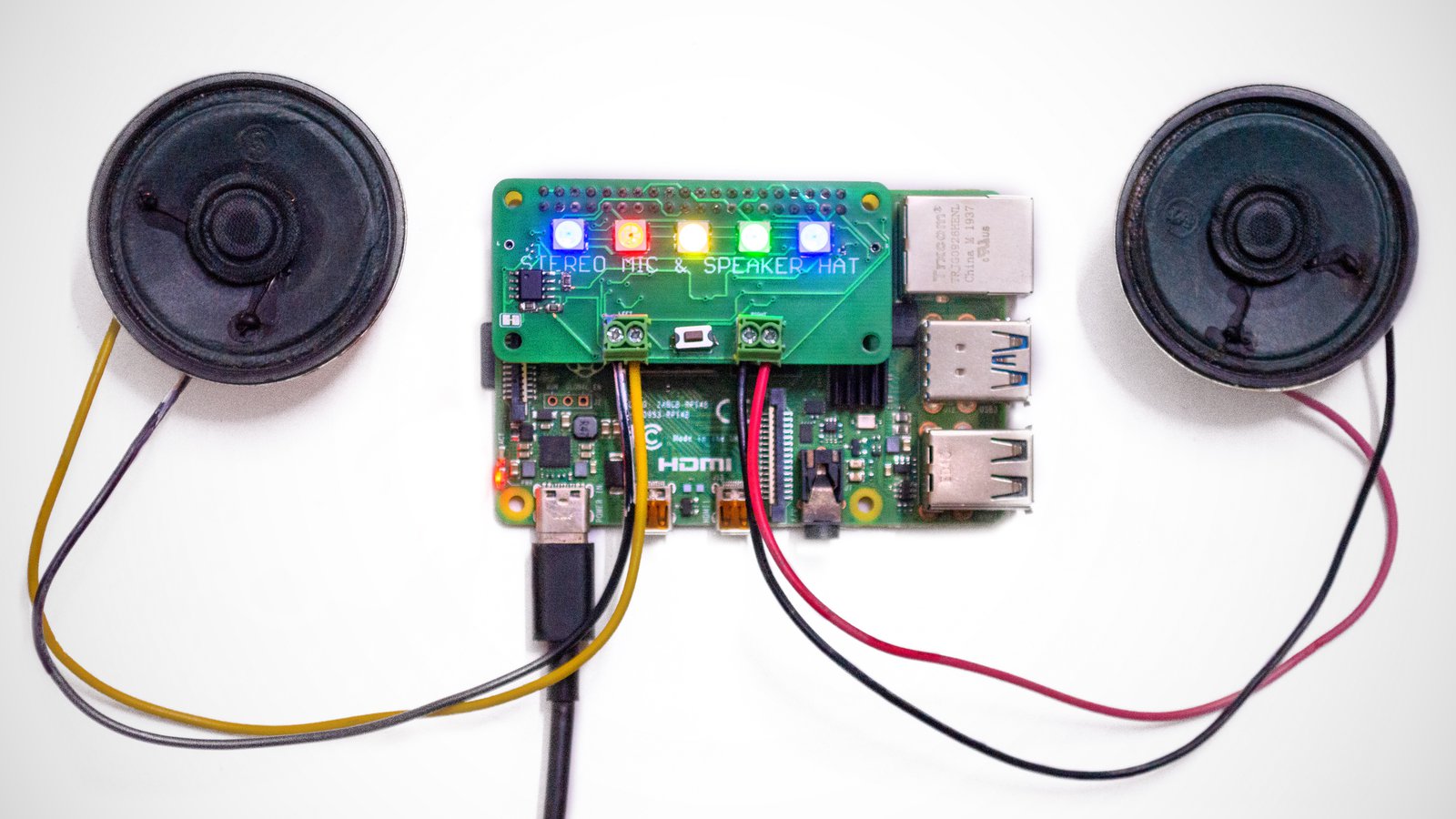

Stereo Mic and Speaker HAT is an audio HAT for the Raspberry Pi board with dual speakers and microphones for stereo audio playback and recording. HAT does not need to be installed as the onboard EEPROM dynamically loads device tree overlays. First, all you need to do is plug in the HAT and boot up the Pi. Make sure not to plug or unplug the HAT while the Pi is powered on and running, but really, it's that simple! By default the amplifier gain is +9dB, but the amplifier gain can be changed via the onboard pads by adding a small amount of solder. The compact HAT measures 65mmx30mm, which is the same size as the Pi Zero, Adafruit's bonnet HAT and Pimoroni's pHAT, making it easy to use the HAT for a variety of projects.
