GD3160 Half-Bridge Evaluation Kit for Danfoss DCM ^{™ 1000X}

FRDMGD3160DCMHB

Overview

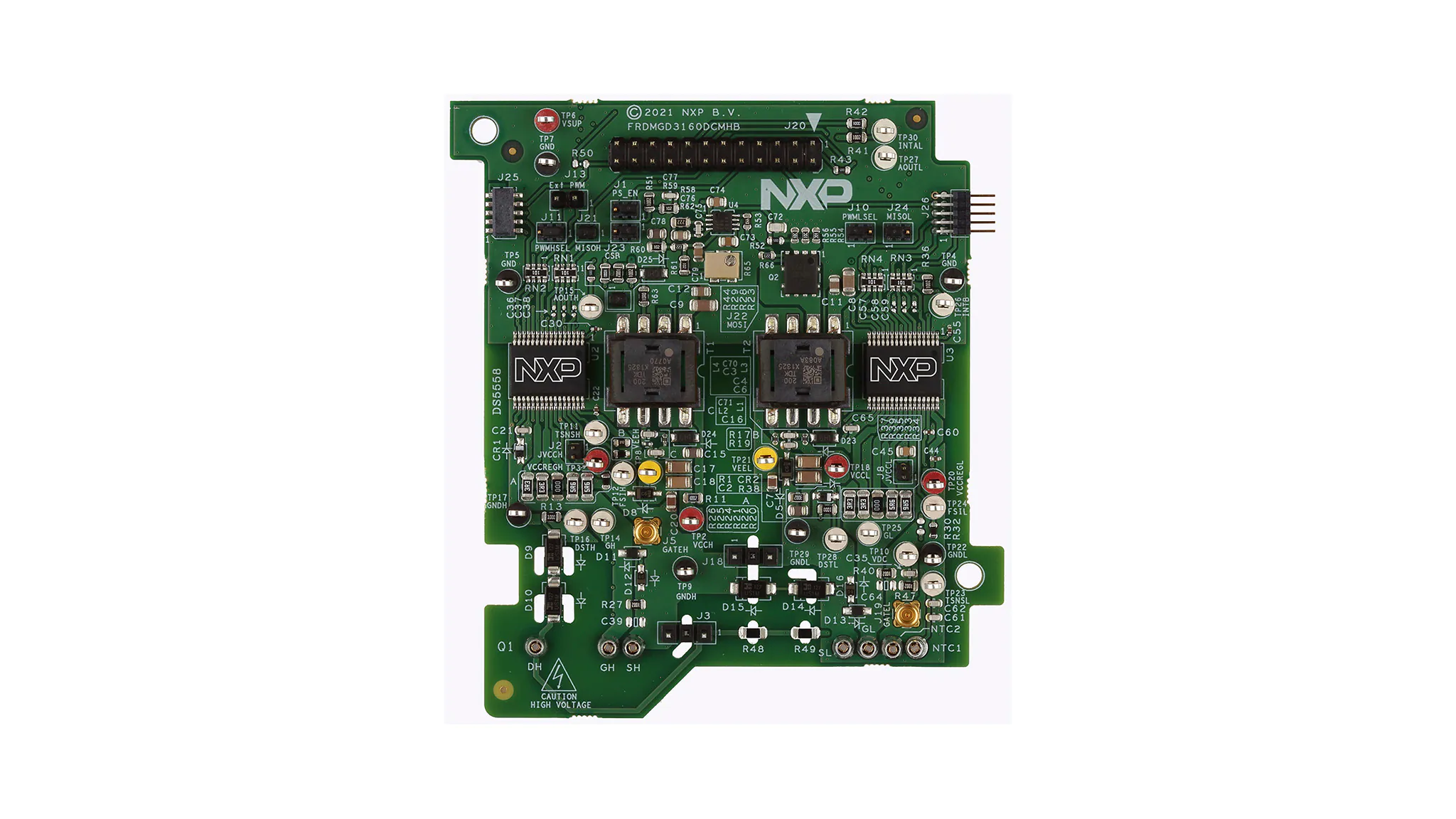

The FRDMGD3160DCMHB is a half-bridge evaluation kit with two GD3160 single-channel IGBT/SiC MOSFET gate driver devices. The kit contains the Freedom KL25Z microcontroller hardware, connected to a PC with Flex GUI software installed, and can be daisy-chained or configured independently to communicate with the SPI registers on the GD3160 gate driver.

The KITGD3160TREVB conversion board is used to convert the 3.3 V signal between the MCU and the GD3160 gate driver to a 5.0 V signal. The evaluation kit can be connected to the Danfoss DCM ^™ 1000X module for half-bridge evaluation and application development. If three-phase testing is required, 3 FRDMGD3160DCMHB can be connected together and driven directly from a single KITGD3160TREVB.

Blockdiagram

Design Files

Documentation

FRDMGD3160DCMHB Evaluation Board User Manual
