85BK-V92 walkie-talkie solution (2)

Introduction: 85BK-V92 intercom matching operation version

1. Product introduction:

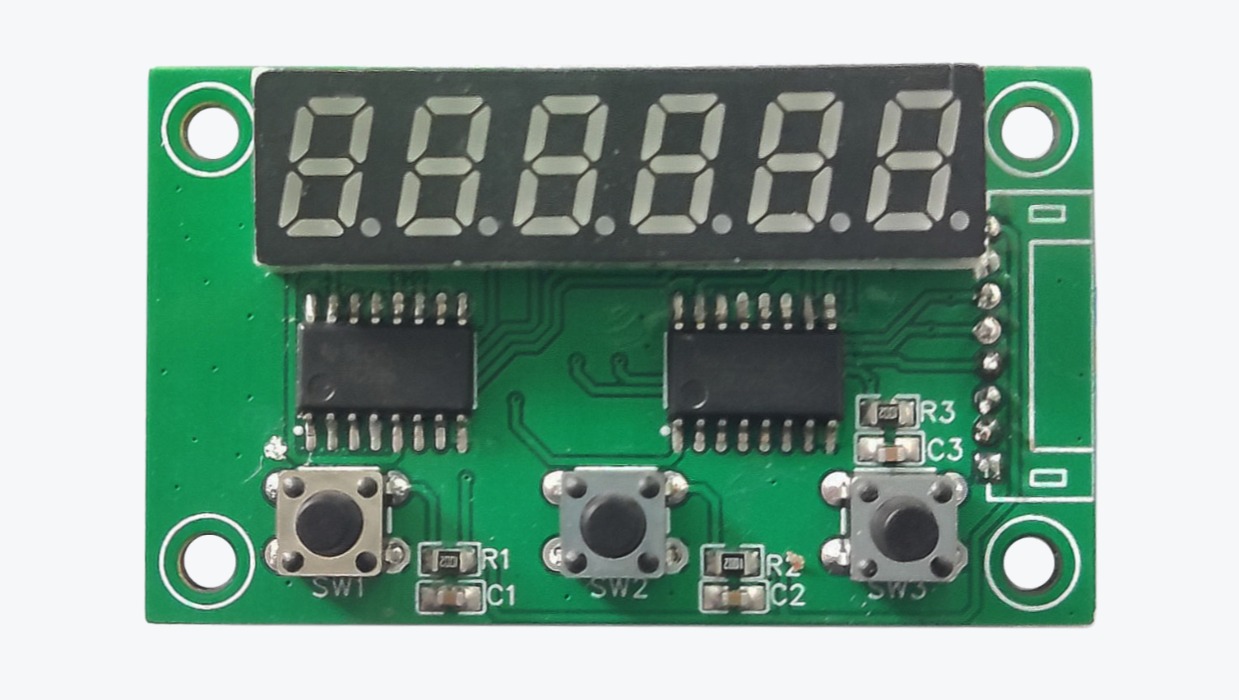

This project is an 85BK-V92 intercom module parameter adjustment panel, plug and play.

2. Application scenario:

It can be used to adjust the parameters of the 85BK-V92 walkie-talkie.

3. Product Overview:

[removed] This module is used in conjunction with the walkie-talkie mainboard. SW3 is the function button, and SW2 and SW1 are the addition and subtraction operation buttons. Press the function key for the first time and the 2nd digit will flash; press the function key for the second time and the 3rd digit will flash; press the function key for the third time and the 4th digit will flash; press the function key for the fourth time and the 4th digit will flash. 5 digits flash; press the function key for the fifth time, the 6th digit flashes; press the function key for the sixth time, the setting volume is turned on; press the function key for the seventh time, the setting SQL is turned on; if there is no operation for 10 seconds, the screen Automatically transfer to working state. All parameters can be adjusted by using the plus and minus operation buttons in the flashing state.

[removed]All parameters can be saved after power off.
4. Product parameters:

[removed] Output specifications: The interface can be used by directly connecting to the motherboard

[removed] PCB parameters: length 56mm X width 33mm

5. Note

[removed] The digital tube is not included in the BOM and needs to be prepared by yourself. For the recommended nixie tube link, please view "nixie tube link.zip" in the attachment.

[removed]This module is pure hardware, plug and play.
