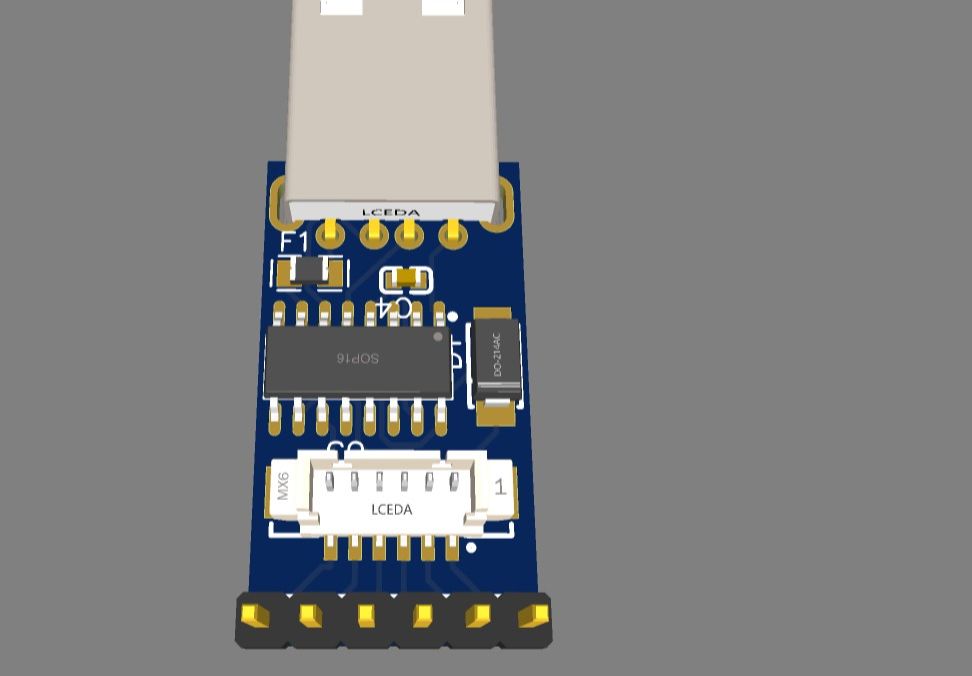

CH343G USB to serial port small board

Overview

1. Using the CH343G chip recently launched by WCH, the speed and stability are improved. It has built-in crystal oscillator and other components and only needs one capacitor to work. 2. 3.3V IO level, can pass about 10ma current. 3. Built-in unique ID to prevent the serial port number from changing after plugging into another USB port. 4. Provides 1.25mm cable interface and 2.54mm pin interface. 5. Can output 5V 500mA. Onboard resettable fuse and anti-backflow diode.

Note: The TXD and RXD marked on the board refer to the TXD and RXD of the target system (not those of the CH343G chip), and no cross connection is required.
