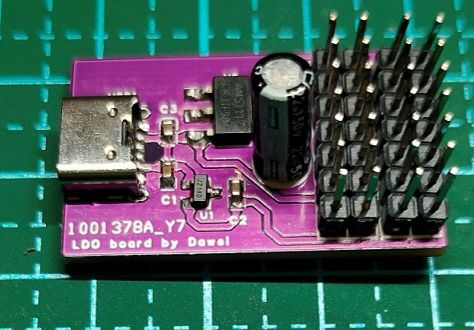

DIY power module, powered by Type-C interface, provides 5v, 3.3v, 1.8v output, convenient for powering other modules.
Schematic diagram
GOOD
| No. | Quantity | Device | Designator | Footprint | Value | Manufacturer Part | Manufacturer | Supplier Part | Supplier |
| 1 | 1 | 1117-1.8V | U2 | SOT-223-3_L6.5-W3.4-P2.30-LS7.0-BR | 1117-1.8V | TF (Tuofeng) | C845412 | LCSC | |
| 2 | 1 | AP7333-33SAG-7 | U1 | SOT-23-3_L2.9-W1.3-P1.90-LS2.4-BR | AP7333-33SAG-7 | DIODES(US and Taiwan) | C150746 | LCSC | |
| 3 | 1 | C10uF-0603 | C3 | C0603_1 | 10uF | CC0603MRX5R8BB106 | YAGEO | C596327 | LCSC |
| 4 | 1 | KM226M050D11RR0VH2FP0 | C4 | CAP-TH_BD5.0-P2.00-D0.8-FD | 22uF | KM226M050D11RR0VH2FP0 | CX (Chengxing) | C43346 | LCSC |
| 6 | 1 | TYPE-C 6P | USB1 | TYPE-C-SMD_TYPE-C-6P | TYPE-C 6P | SHOU HAN( SHOU HAN) | C456012 | LCSC | |
| 7 | 2 | 2.54-2*7P needle | J1,J2 | HDR-TH_14P-P2.54-V-M-R2-C7-S2.54 | 2.54-2*7P needle | BOOMELE(BOOMELE) | C71397 | LCSC | |
| 8 | 2 | 0603WAJ0512T5E | R1, R2 | R0603 | 5.1kΩ | 0603WAJ0512T5E | UNI-ROYAL(thick voice) | C26000 | LCSC |
| 9 | 2 | CL10A105KB8NNNC | C1,C2 | C0603 | 1uF | CL10A105KB8NNNC | SAMSUNG(Samsung) | C15849 | LCSC |
