G304 side key board V2.0

Overview

Cable terminal model 1mm 1*3p

——————————————————————

2022.7.28

Modified the layout settings, added copper paving, and adjusted the size of the board. In theory, it should fit better

——————————————————————

2022.8.2

I have tested it, and the 1.0 board is stuck very tightly, just right.

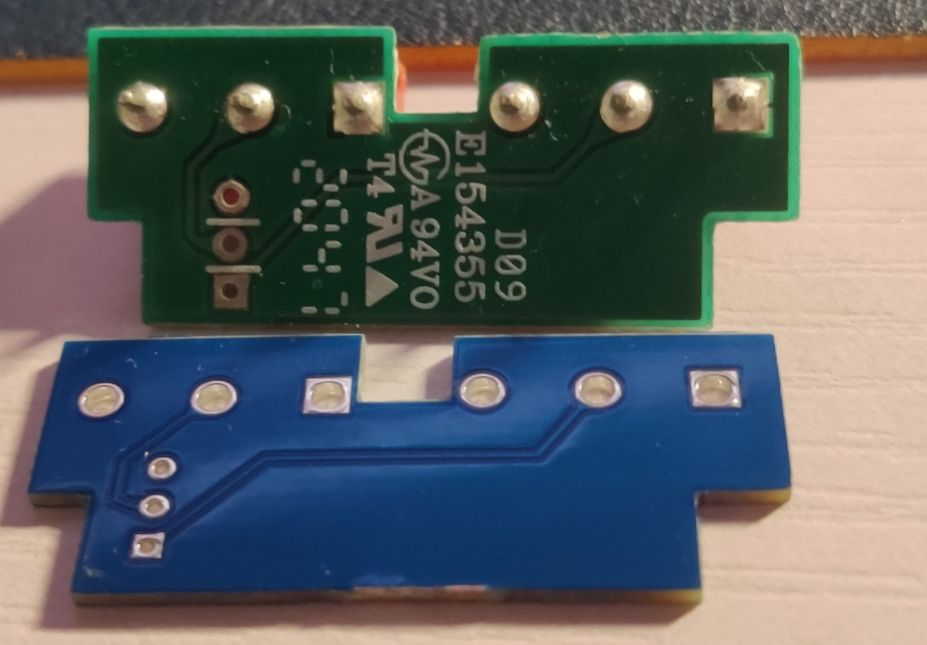

The second version (blue) overlaps the original version (green)

Almost exactly the same as the original

————————————————————————————————————

First version comparison

Overlay comparison between the first version (white) and the second version (blue) and the original version (green)
