走马观花

SD++ (SD small TV series

Overview

The ESP8266-12F (E) is used with lower power consumption, and a download circuit is added. The screen uses a 1.28-inch IPS screen of GC9A01. Since I won’t be making boards during the holiday, there is no verification (bushi). Waiting for February 8th, No. We immediately verified that the PCB used a 4-layer board [the wiring of the 2-layer board always failed]. It is recommended to use the free proofing provided every month. The 10*10 2/4-layer board is free of charge (doge). Then? Just like that. , the program is in GitHub. . . ((Github link → [chuxin520922/Small Desktop Display (github.com)](https://github.com/chuxin520922/SmallDesktopDisplay) ← Just use the code inside. The code in the attachment is the same. The UI is not adapted, so Well. dddd

Please, pass the review QwQ

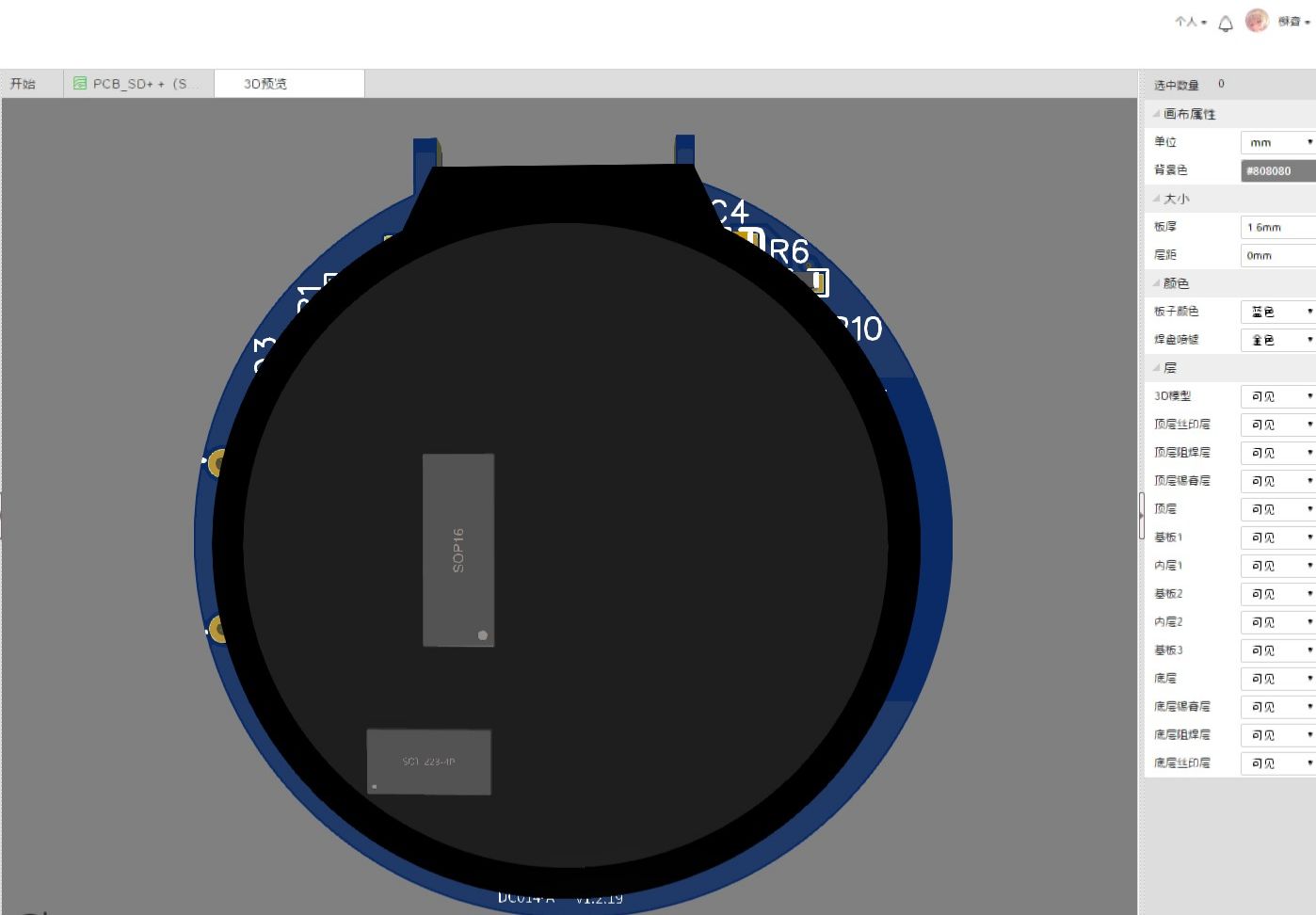

Attached screenshot UwU! [Screenshot 2022-01-29 234128.jpg]

![Screenshot 2022-01-29 234200.jpg]

![Screenshot 2022-01-29 234220 .jpg]

![Screenshot 2022-01-29 234234.jpg]
