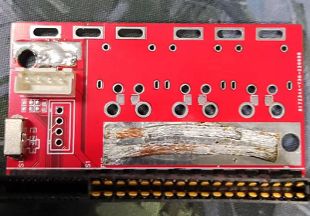

It is suitable for use with DELL 495W power supply and can be used with the previously open source ATX power supply. The three XT30/XT60 power supplies correspond to the CPU, GPU and ATX power supply respectively. The HDD is output by the MR30 in the ATX power supply. 12VSB, PSOK, PSON signals are output by XH connector. DIP switch can force power on.
Please check the line sequence again before powering on.
