[Lanqiao Cup Practice Question 2] Simulation Questions of the 13th Lanqiao Cup EDA Competition


Overview

The 13th National Software and Information Technology Professionals Competition Individual Competition EDA Design and Development Subject Mock Test Questions

Part 1 Objective Questions (30 points)



1- Mil is commonly used as the unit in circuit board design, and its conversion relationship with mm is ( ).

A. 1mil = 0.0254mm B. 1mil = 0.02mm  C. 1mil = 0.254mm D. 1mil = 0.2mm



2-It is customary to divide printed circuit boards according to the number of layers on the board. Which of the following are not typical designs ( ).

A. Single-layer board B. Two-layer board  C. Three-layer board D. Four-layer board



3-In PCB design, wiring layer switching is realized through ( ).

A. Silk screen B. Copper  C. Solder mask D. Via



4-In the schematic design process, through which methods can the connection relationship between two components be established ( ).

A. Connected by wire

B. Place the same network label

C. Place text to explain

D. Modify to the same component number



5-In the circuit shown in the figure below, when Ui = 1V, Uo is ( ).


A. 0.1V B. 5.4V  C. 0V D. -0.1V



6-A chip resistor, identified as 1002, the following description of the resistor is correct ( ).

A. The resistance value is 10K and the accuracy is 10%

B. The resistance value is 100K and the accuracy is 1%

C. The resistance value is 10K and the accuracy is 1%

D. The resistance value is 100K and the accuracy is 1O%.



7-When the voltage gain of the amplifier circuit is -20dB, its voltage amplification factor is ( ).

A. -20 times B. 20 times  C. 10 times D. 0.1 times



8-After the printed circuit board design is completed, the process of rule checking is generally called ( ).

A. DRC B. RUL  C. RCK D. PCB



9-A complete printed circuit board, mainly including ().

A. Insulating substrate B. Copper foil, holes  C. Silk screen D. Solder mask



10-In circuit board design, the better design of ground loop is ( )



A. The loop area is large B. The loop area is small  C. The loop area is vertical D. It has nothing to do with the loop area



Part 2: Design test questions (70 points)

Question library document design (5 points)

Create a new component package and name it: BW-SOP-8. The package design requirements are shown in the figure below. (5 points)


Figure 1 Package design (BW-SOP-8)

Design requirements:

  • Set pad 1 as the coordinate origin.
  • Pad size: length is set to 2.20mm, width is set to 0.80mm.
  • Pad shape: oblong (top layer)



Question 2 Schematic Design (20 points)

New Construction;

Open the schematic file sch.json provided in the "Resource Data Package"; complete the schematic design according to the following requirements.

1. According to the sample diagram given, complete the placement of component symbols, line drawing and network addition in the design area of ​​the digital tube drive circuit (Design_Seg Driver). (12 points)


Figure 2 Digital tube drive circuit

Design requirements

  • The placement of components is basically the same as the sample picture.
  • The number, value, network label name, component network connection relationship, etc. of the components need to be completely consistent with the schematic diagram, otherwise the score will be zero.

2. In the operational amplifier design area (OPAMP Design), connect the power network, calculate the value of resistor R6 (voltage amplification factor is 1.5) according to the given circuit connection relationship, and fill in the calculation result in the name of the R6 component attribute . (8 points)

Schematic design description:

  • The component number and network connection relationship that have been given in the "resource data package" schematic diagram cannot be modified.
  • Symbol libraries other than "resource packages" cannot be used.



Question 3 Printed circuit board design (45 points)

1. Preparation

  • Open the PCB.json file provided in the Resource Pack and add it to the project file.
  • According to the symbol-package correspondence given in the table below, add device packaging information to the schematic diagram and import it into the PCB.

Component number

encapsulation

B1

BAT-CR1220

C1,C5,C6,C7,C8,C9

C0805

C2,C4

CAP

C3

C0805

CN1

USB-B

D1

DIODE

H1

HDR-F-2.54_1X3

LED1

LED0805

Q1

SOT-23-3

R1,R8,R19,R21,R22,R23,R24,R25,R26,R27

R0805

R2,R5,R16,R17,R18,R20,R28,R29,R30

R0805

R3,R4,R12,R14

R0805

R6

R0805

R7,R9

R0805

R10,R11,R13,R15

R0805

SEG1,SEG2

LED-SEG

SP1

BUZZ

SW1

SW-SMD_4P

U2

SOP-16

U3

SOP-8

U4

SOP-8

U5,U7

SOP-16

U6

QFP-LQFP-44

U8

SOP-8

X1

XTAL-DT38

U1

SOIC-14_L8.7-W3.9-P1.27-LS6.0-BL

Note: Package libraries other than "resource data package" cannot be used. 2. Component layout

  • SEG1 digital tube 1 pin coordinates (29mm, 47mm).
  • SEG2 digital tube 1 pin coordinates (60mm, 47mm).
  • All devices are placed on the top layer.
  • common enquiries

Reasonably arrange the layout. Components should be arranged parallel or vertically to each other in order to be neat and beautiful. Overlapping of components is not allowed. The arrangement of components should be compact, and the components should be evenly distributed and dense throughout the entire layout.

3. Wiring design

  • Complete the wiring design within the given PCB border layer.
  • PCB design requirements

Minimum line width: ≥14mil Line spacing: ≥6mil

Via size: 12mil/24mil Number of wiring layers: 2

Character layer: The top silk screen layer requires the characters to be placed neatly. Copper layer: top layer, bottom layer, GND network.

Closing rate: 100% 4. File export

Export the netlist from the schematic (Free PCB format) and rename it to USER.net.

*Document submission requirements

1. According to the design requirements of the first library file of the test question, complete the design of the BW-SOP-8 package, export the Lichuang EDA package library file, and name it BW-SOP-8.json.

2. According to the schematic design requirements of question 2, complete the drawing of the schematic diagram, export the Lichuang EDA schematic diagram file, and name it SCH.json.

3. Complete the PCB design according to the PCB design requirements of question three, export the EDA PCB file, and name it PCB.json; export the netlist file (Free PCB format) to USER.net.

4. The compressed file package finally uploaded by the contestant should contain four files: BW-SOP-8.json, SCH.json, PCB.json, and USER.net.

5. Contestants who fail to name and submit documents as required will have their points deducted or be given zero points as appropriate. Contestants who submit documents that do not meet the test question requirements will have their points deducted or be given zero points as appropriate.



Video teaching materials: https://www.bilibili.com/video/BV1LP4y1E7Hd?p=7

Test question package: Please download it from the attachment.

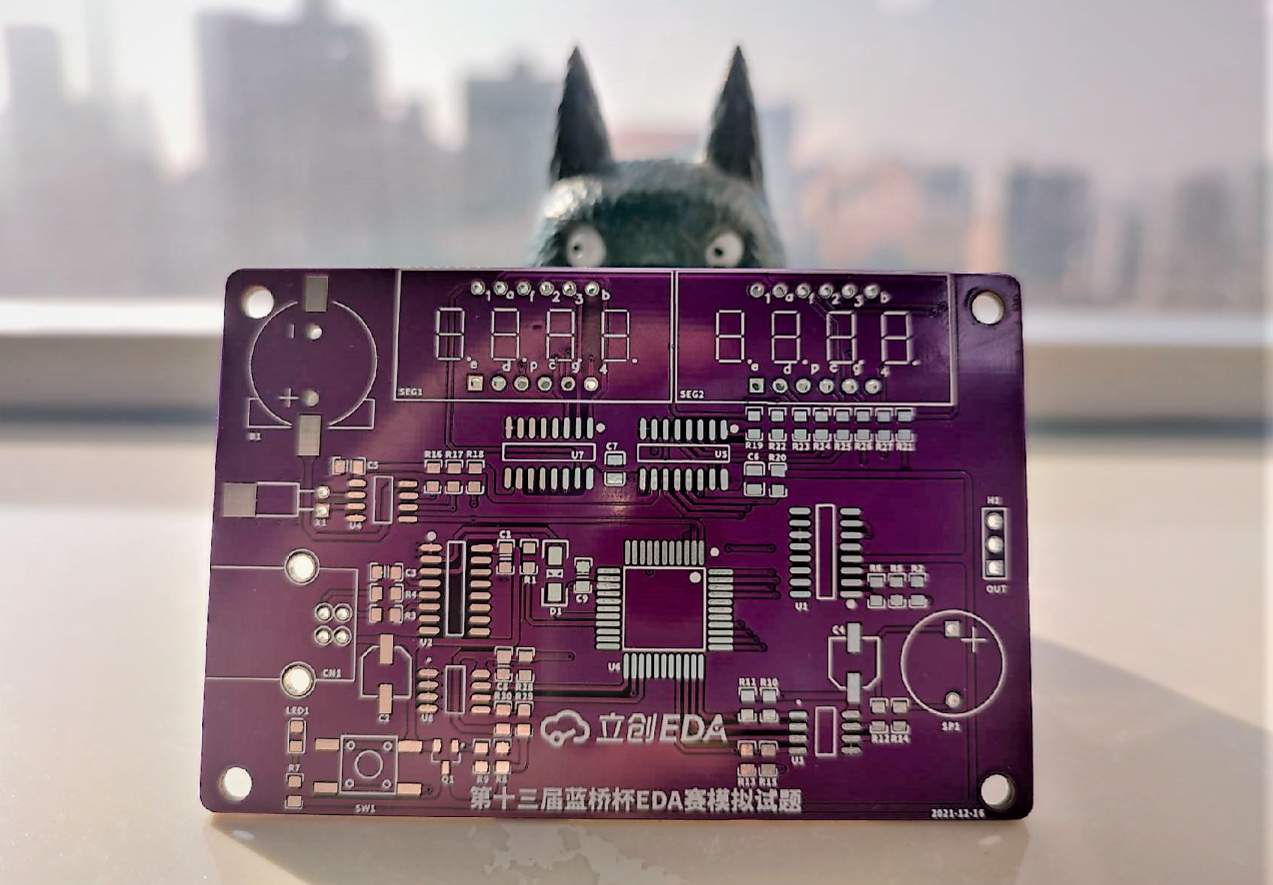

参考设计图片
×
