eMDA2S

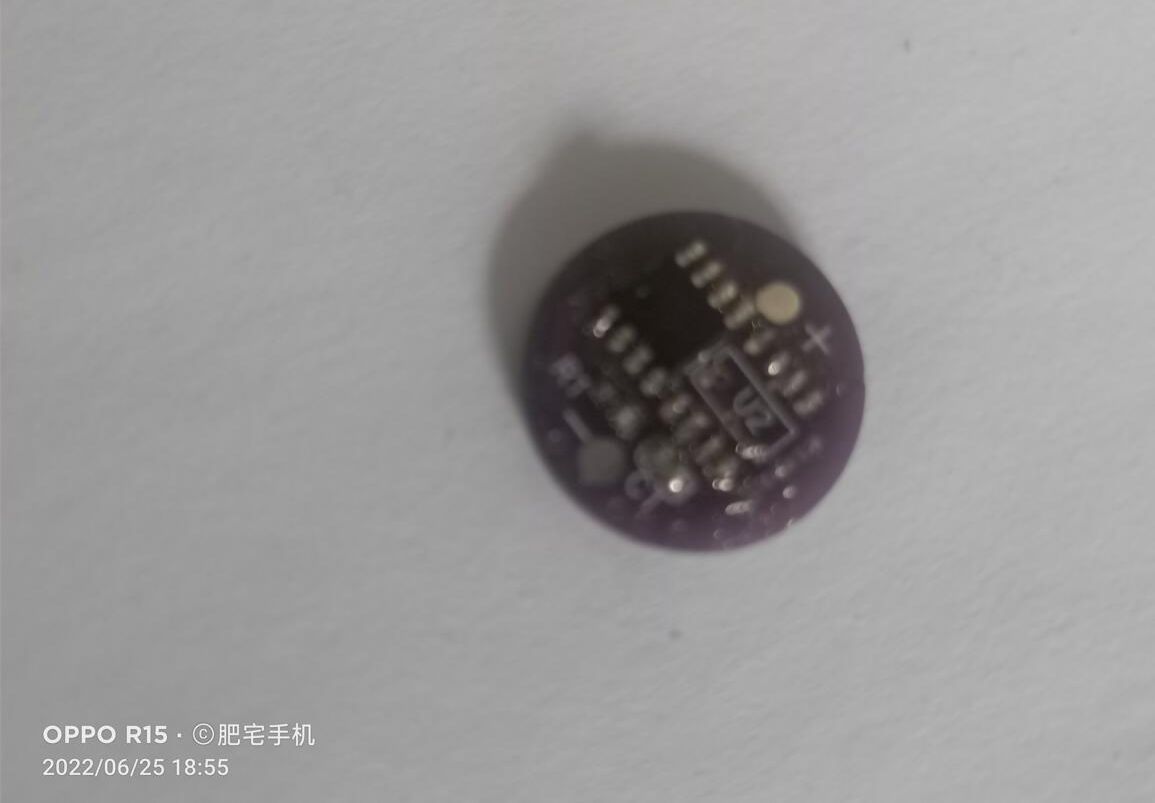

Feizhai flashlight driven by 1.5A single cell lithium battery

Overview

The domestic chip STC8G1k08 is used as the main control, and the CN5711 constant current driver chip is used as the driver's flashlight driver circuit. Maximum current 1.5A, can be used for CREE L2 q5 SST40 XHP50.2 and other lamp beads

The advantage of bringing your own 51 microcontroller is that you can customize various modes, and the price is cheaper than the AVR microcontroller.

Design Files

All reference designs on this site are sourced from major semiconductor manufacturers or collected online for learning and research. The copyright belongs to the semiconductor manufacturer or the original author. If you believe that the reference design of this site infringes upon your relevant rights and interests, please send us a rights notice. As a neutral platform service provider, we will take measures to delete the relevant content in accordance with relevant laws after receiving the relevant notice from the rights holder. Please send relevant notifications to email: bbs_service@eeworld.com.cn.

It is your responsibility to test the circuit yourself and determine its suitability for you. EEWorld will not be liable for direct, indirect, special, incidental, consequential or punitive damages arising from any cause or anything connected to any reference design used.
