【TINY-PMU】AXP173 super mini power management module~

Overview

【TINY-PMU】AXP173

Ultra-mini power management module, suitable for small mobile devices and robots with batteries~
Video introduction: https://www.bilibili.com/video/BV1dG4y1i7cT
Github link: https://github.com/Forairaaaaa/TINY-PMU-AXP173

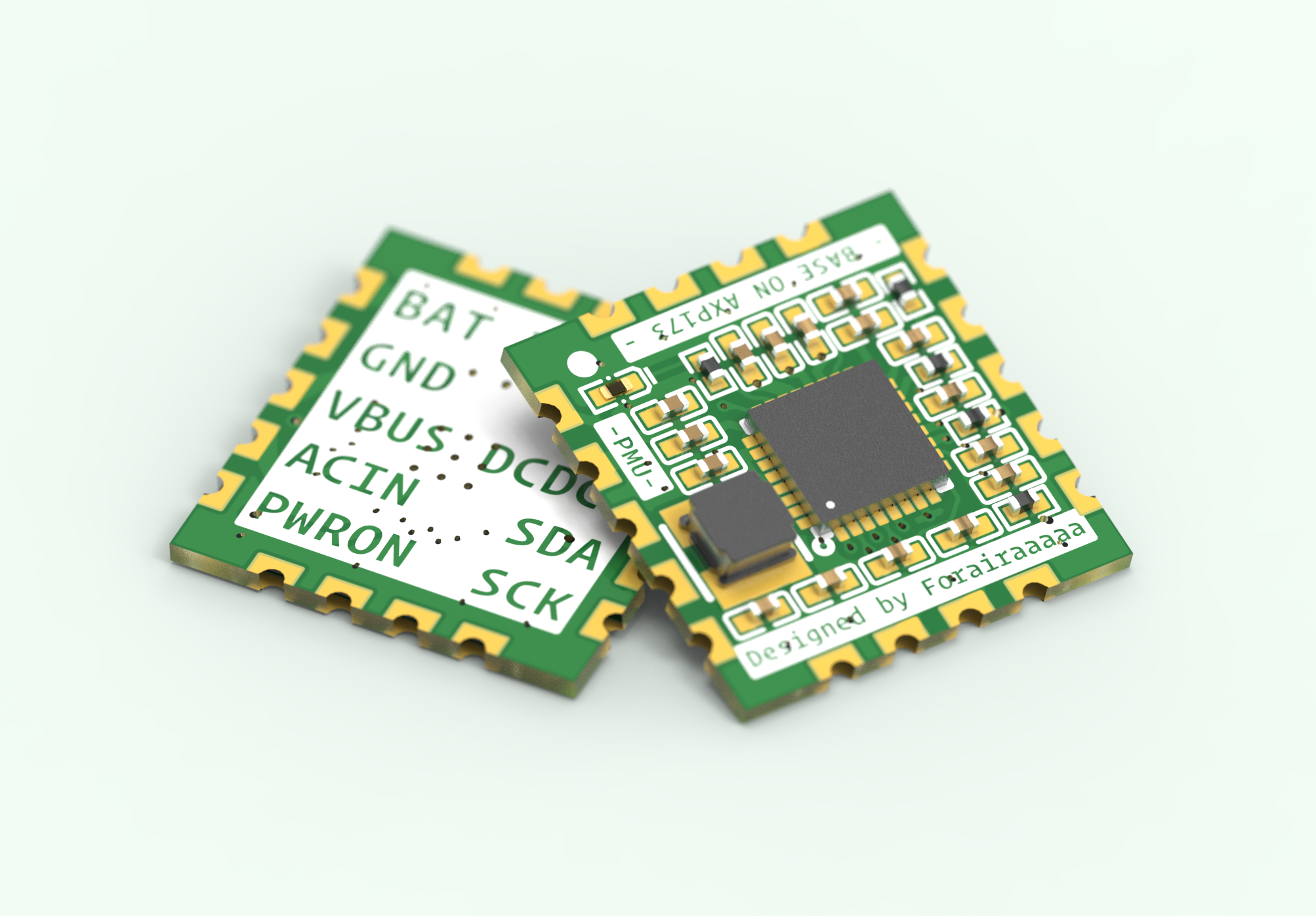

Super mini: 1.6cm x 1.52cm, based on AXP173, integrated core circuit, ready to use after connection
The pins are led out from half-holes with a pitch of 2.54mm, and the pin headers can be soldered to be directly connected to DuPont wire for convenient testing and development~
Conventional process processing is also possible

Functional description:
Controllable DCDC, LDO power output
Battery temperature, battery capacity, charge and discharge information, etc.

Adapt Arduino library:
Forairaaaaa/TinyPMU: Arduino library for TINY-PMU

Precautions:
In order to reduce the volume, DCDC-2 related pins are not lead out
The wiring width is limited, and it is not recommended that the load current is too large.
