ESP32-S3 4.3-inch electronic photo frame (FPC4301MS)

ESP32-S3 4.3-inch electronic photo frame uses an IPS screen, not a stock screen.

The BOM is provided for reference. Cheaper devices of the same value can be purchased on Taobao.

Product introduction

ESP32-S3 4.3-inch electronic photo frame, the screen is a brand new IPS screen purchased from Taobao. Compared with Xianyu’s stock screen, there is no quality problem and it can be supplied for a long time. You can refer to this layout to complete your own product design when using it.

Application scenarios

Electronic photo frame, industrial serial screen display, other display purposes

product advantages

1. 4.3 inch IPS screen, 800x480 resolution, high resolution and good display effect.
2. ESP32-S3 master control, ESP32-S3-WROOM-1-N8R8 module, built-in 512k SRAM, compared to STM32, can obtain a faster refresh rate and more memory for development.
3. The backlight uses constant current drive to ensure brightness and longevity.
4. Comes with SD card connector for easy reading of files from SD card
5. Built-in buzzer

Attachment description

HX8369-A_DS_preliminary_v01_100713-for weite--24(1).pdf Screen driver manual

HX8369A+LG4.3 MCU 8BIT(1).txt screen initialization code

HX8369A_DEV.zip A copy of ESP-IDF test code

Screen instructions

Purchase link: https://item.taobao.com/item.htm?spm=a1z09.8149145.0.0.2cfb4a89JML6yM&id=678629003092&_u=l2dklb4577b1

Please ask customer service for the specifications after purchase. The attachments for this project are not provided!

Paste tape purchase link: https://item.taobao.com/item.htm?spm=a1z09.2.0.0.83302e8dQrgygh&id=563531074529&_u=l2dklb4568c6

Code description

The project needs to be compiled using IDF5.0. If there are any problems, please confirm whether it is the MASTER branch.

Welding instructions

Except for FPC, there is basically no difficulty. If necessary, you can privately message related questions.

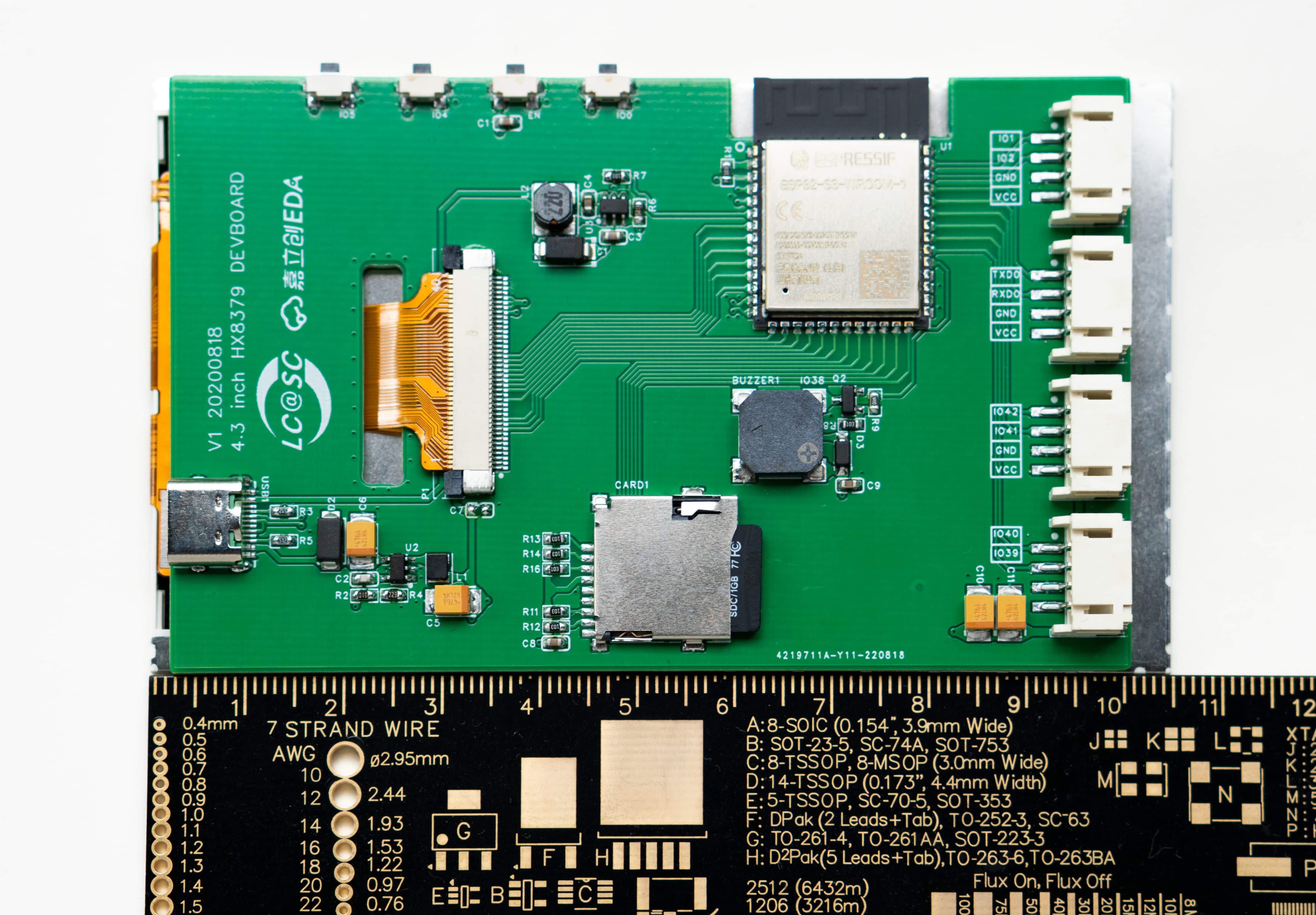

Show pictures
