IP5389 fast charging power bank V1.2

Overview

Introduction

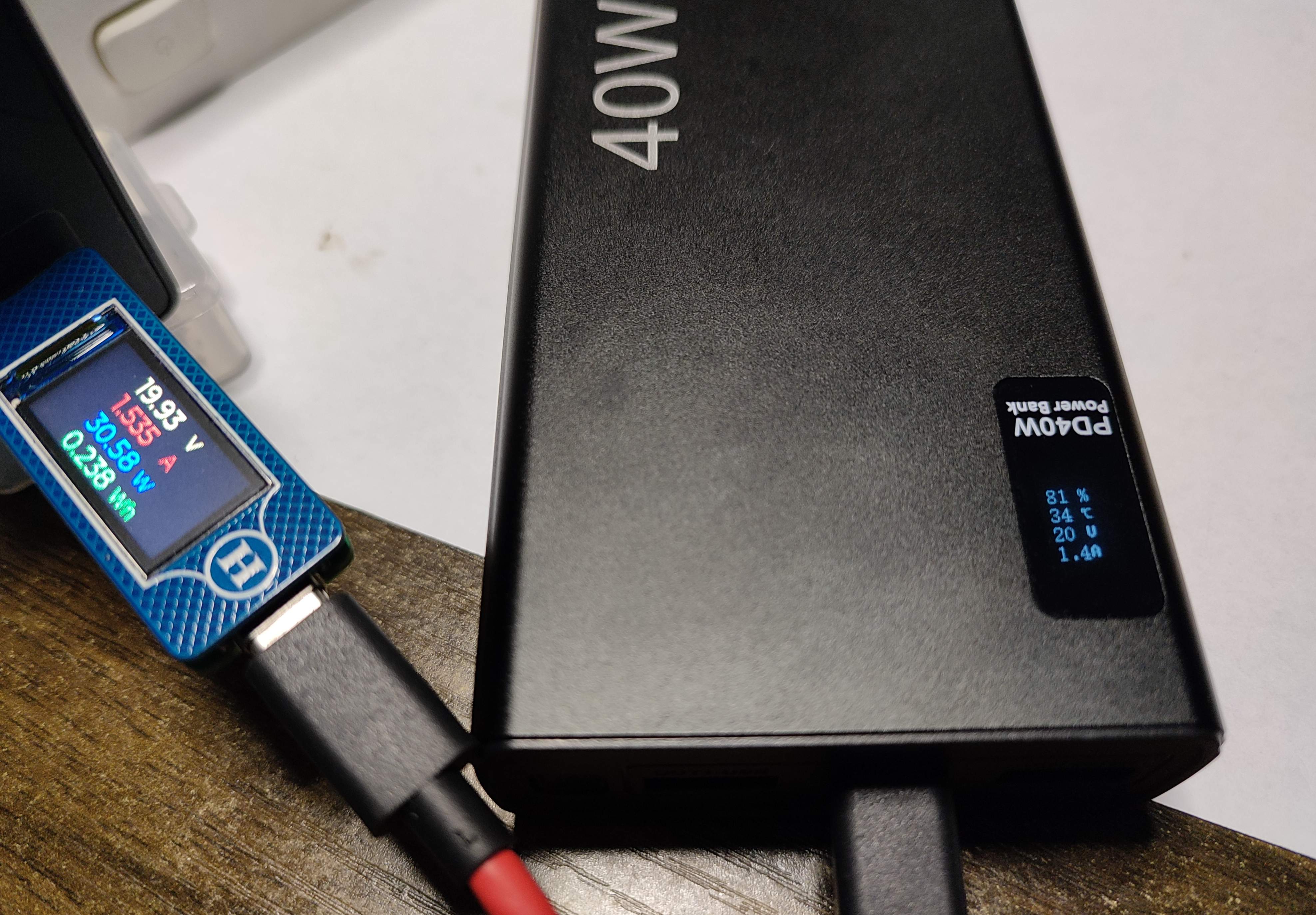

The IP5389 fast-charging power bank adopts a public mold casing on the market and integrates a 0.42-inch OLED display, which can display battery capacity, temperature, and charge and discharge voltage and current.

characteristic

Using Yingjixin IP5389_I2C_AACC fast charging chip, it can realize PD two-way 60W fast charging (without EMARK power)
Dual A port, 1 bidirectional TYPED C port
3 high-rate 21700 batteries, integrated battery protection and balancing chip, with NTC high temperature protection
Integrated STM8S103 microcontroller and 0.42-inch OLED display, which can display battery power and temperature, charge and discharge voltage and current
with lighting

Existing issues

Charging can reach 60W, but there is a problem with discharging. It will automatically cut off after exceeding 17W. We are still looking for the reason.

Purchase link

shell

Trim off one of the mounting posts and digital tube frame
