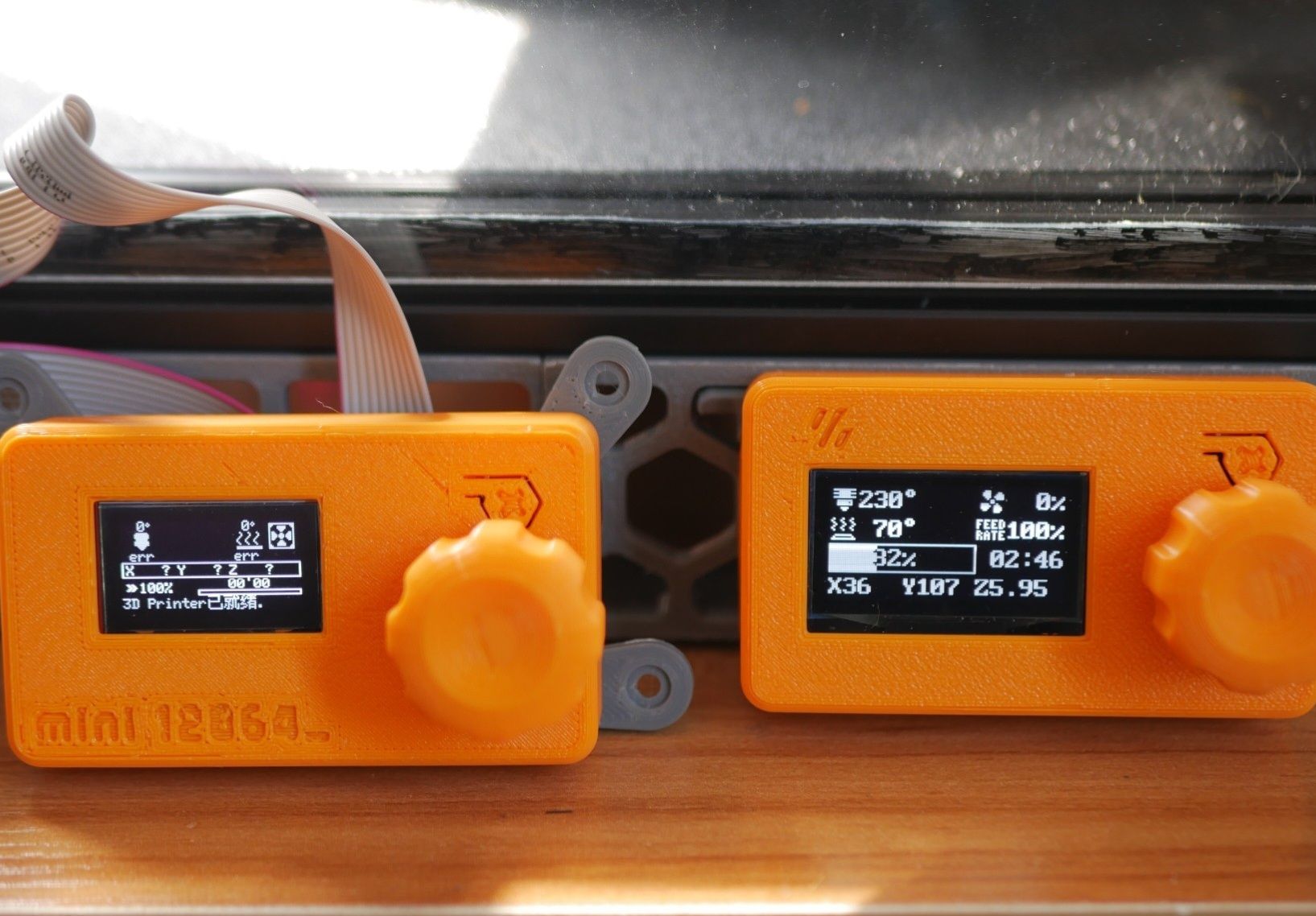

3D printer screen OLED controller (mini12864)

Overview

Marlin firmware: can be used for ramps+mega2560, MKS GEL L motherboard, other motherboards need to modify the line sequence

Klipper firmware: can be used for ramps+mega2560, MKS full series motherboards, Fuyuansheng full series motherboards and other motherboards with extended interfaces

Configuration method: https://ixprism.cn/3dp-oled/

When used with Klipper, it is not necessary to solder the SD card slot, LDO and 74HC4050D

Modified from: 3D printer controller - Jialichuang EDA open source hardware platform (oshwhub.com)
