The simple TSOP48 programming socket is suitable for the RT809H programmer. It is also suitable for other programmers that support universal programming sockets. It has been tested that it can work normally on the RT809H.

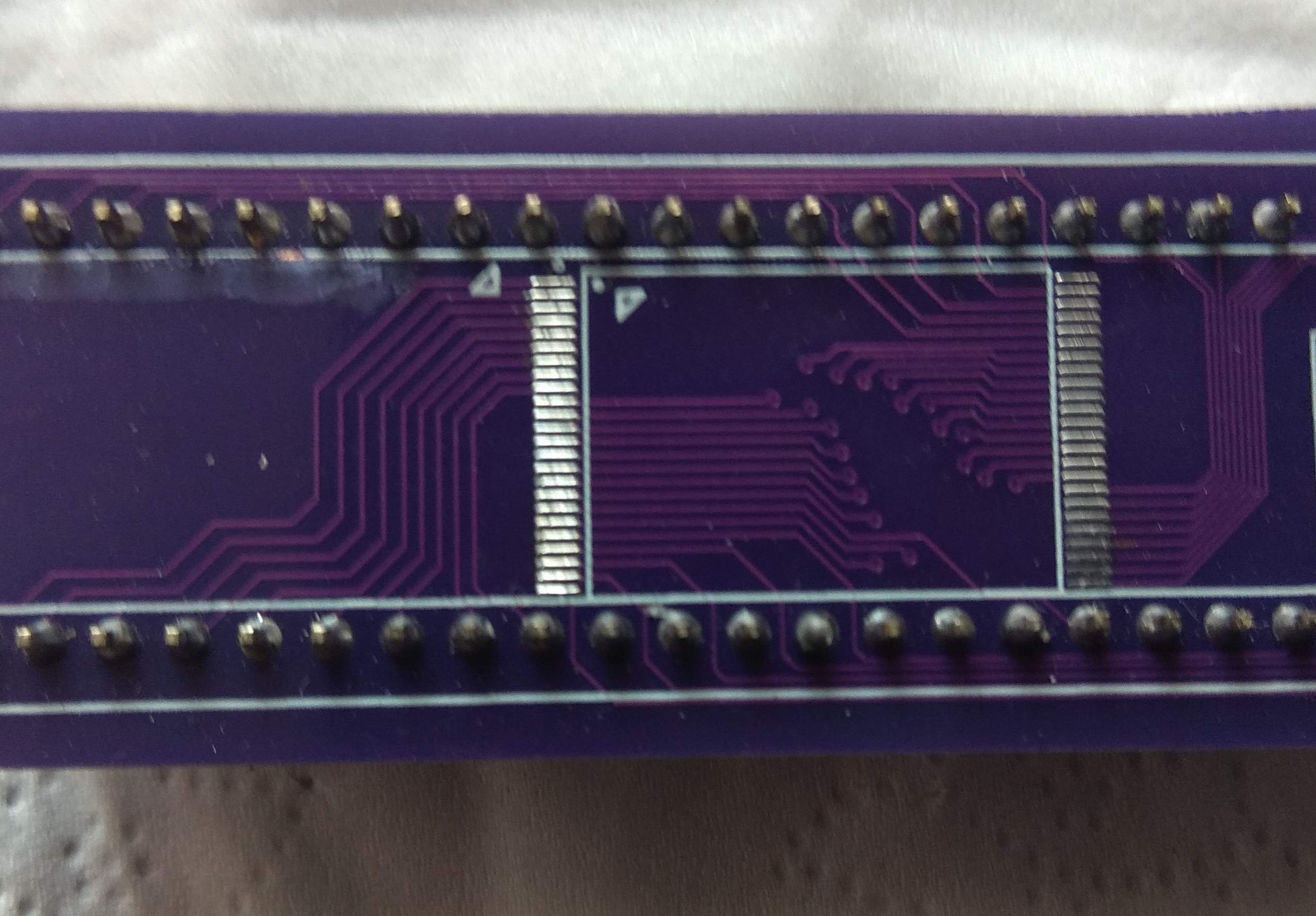

front
back
Put it on RT809H
side
PCB preview
Double-layer board structure,
Engineering for EDA Professional.
The plate making files and project files are in the attachment.
PS: There are easter eggs in the project files!
