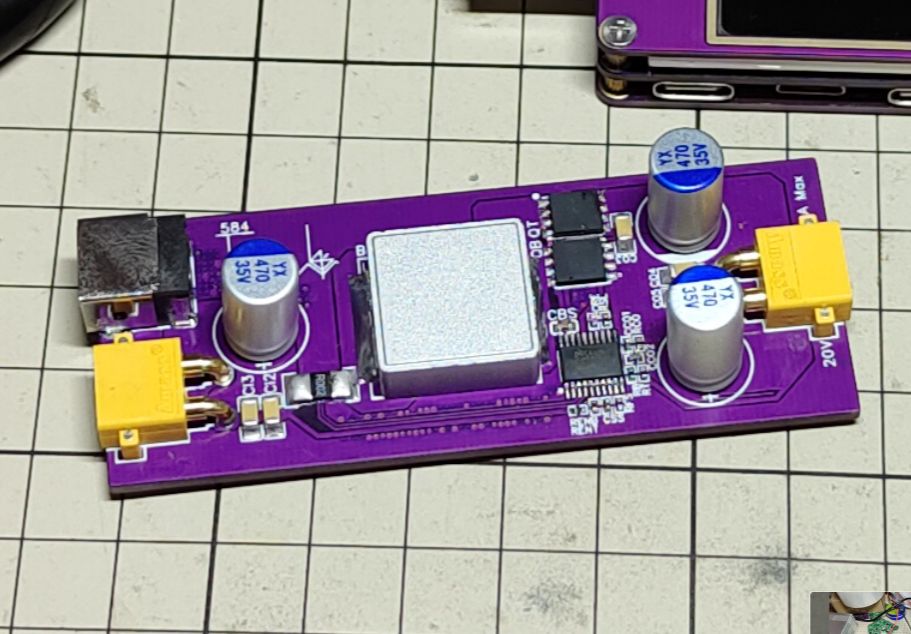

Love Tomb Style No. 584 - 200W20V Boost Module in LM5122 Atmosphere

Overview

Input side:

Voltage:11-19V

Equipped with XT-30+DC_044 input slot

Output:

Voltage:20.2V

Output current capability: maximum 10A

The current limit is on the input side. Generally speaking, the input current should not exceed 15A.

Design efficiency 96%

The inductor can be flexibly replaced according to your actual scenario. It is recommended to adjust it between 3.3-10uh.

Laoge (wzw666) tested this module and drew the PCB panel.
