ESP8266 Internet of Things Development Board V2.0

Overview

V2.1

Adjust the order of pins IO5 and 3V3 in the upper right corner so that the three-pin DHT11 temperature and humidity module on the blue board can be directly inserted!
Adjust USB to Type-C (C2837092)
Replace the button with a 4.5 vertical touch switch 160gf (C843612)
Silk screen adjustment
Draw the shell and adjust it slightly according to the proofed shell

V2.0

Adjust silk screen

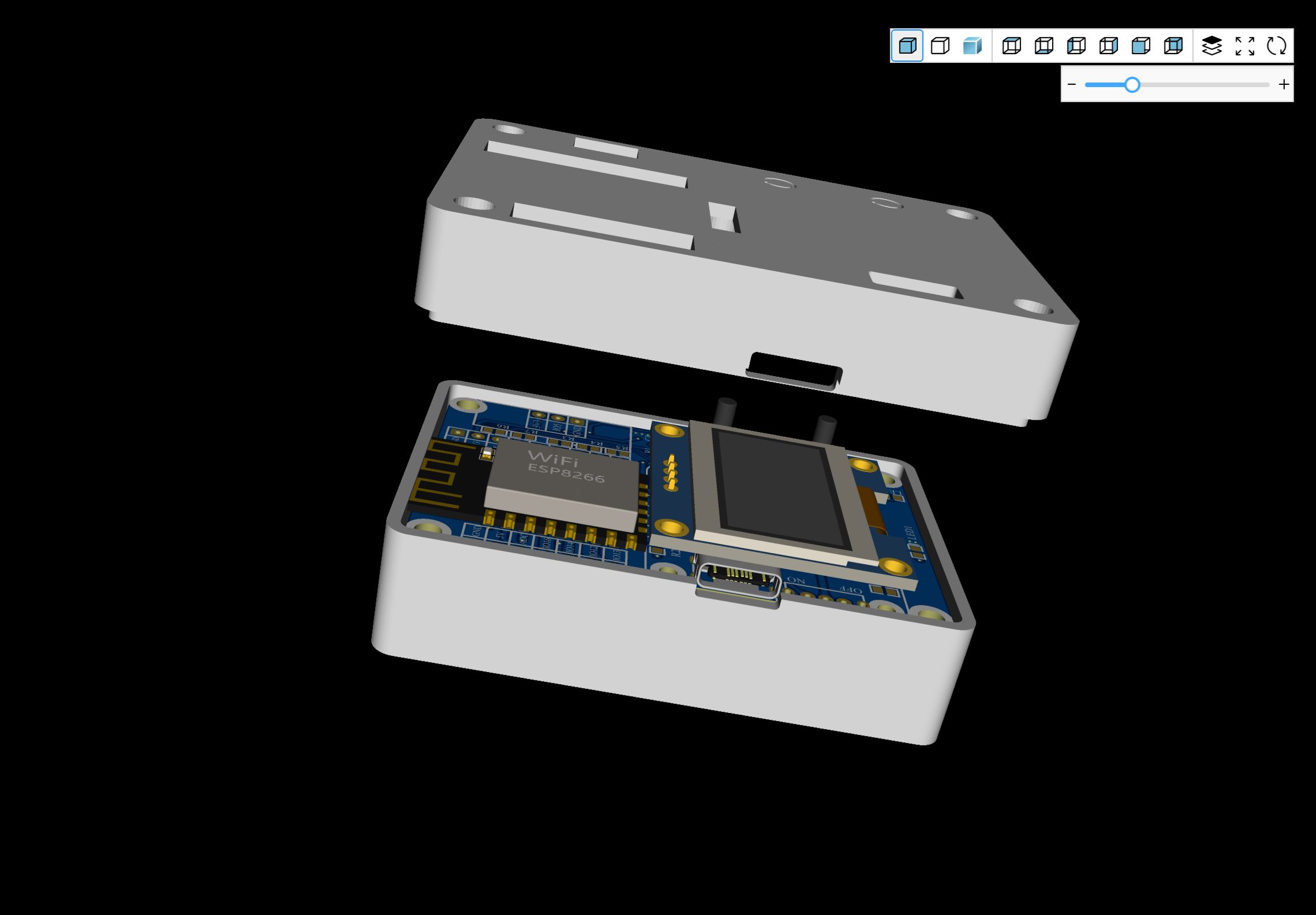

Draw 3D shell
Fine-tune USB packaging and no longer report errors in DRC
