Ruler with various circuit design knowledge memos

Overview

# Content Description

1. Ruler in mm units from zero to 25cm
2. Ruler in mil units from zero to 4000mil
2. Protractor
3. Common inch length indicators, such as 0.025''= 0.635mm, 0.05'' = 1.27mm, 0.1' ' = 2.54mm
4. Common mm width indication
4. Schematic diagram and working status of PNP and NPN transistors
5. Color ring resistance memo
6. Current line width memo (1oz thickness)
7. AWG specification wire diameter indication

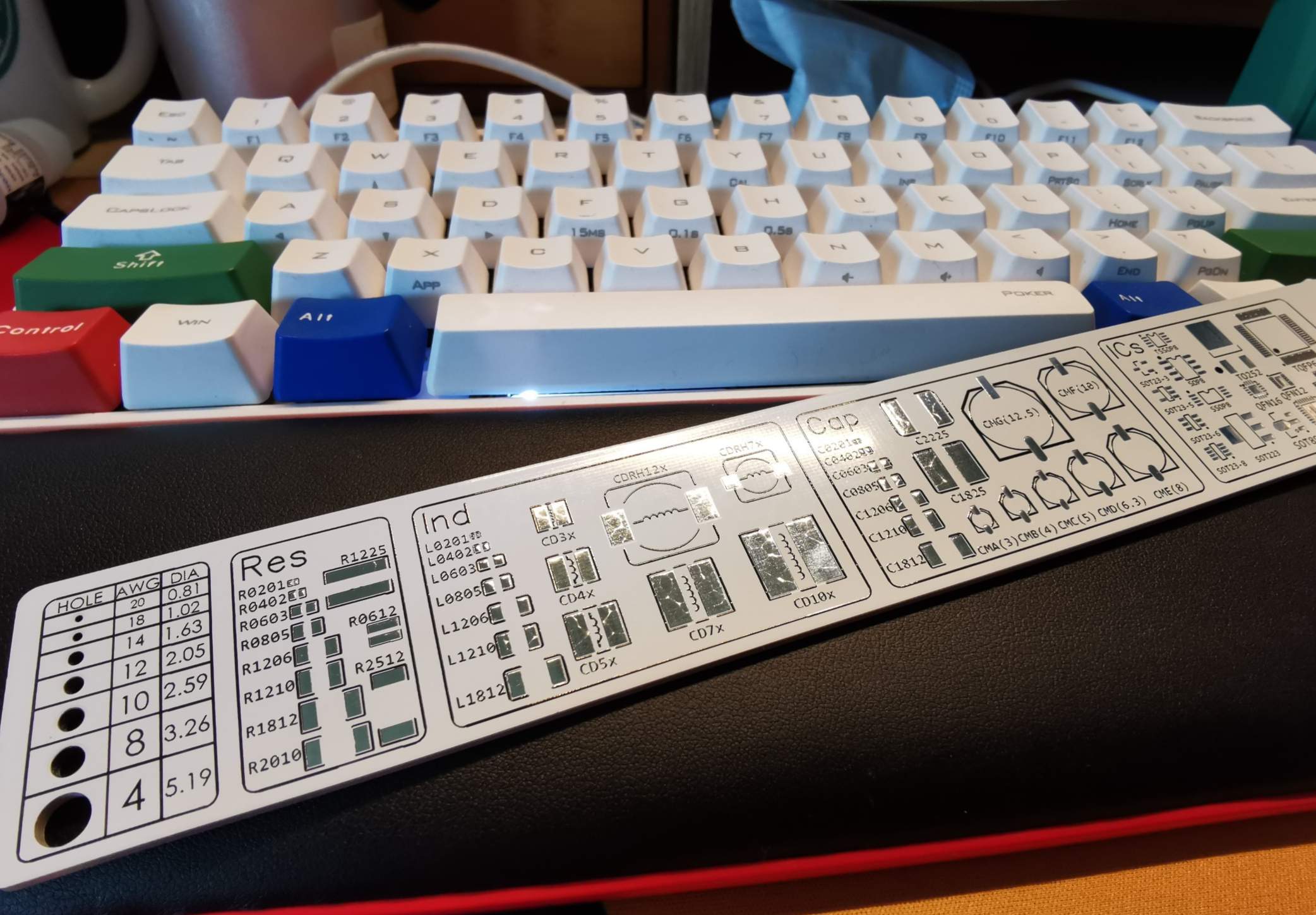

8. Common resistors, Capacitor, inductor and chip IC package specification instructions.
![IMG_20220421_141427.jpg]

![IMG_20220421_141442.jpg]

# Supplement

1. The JLCJLCJLCJLC on the right side of the front can be used for guest editing;
2. Use white for proofing silk screen.

# Reference open source project

* Functional scale, Ma Chenghua, [https://oshwhub.com/macheng/gong-neng-xing-ke-du-chi](https://oshwhub.com/macheng/gong-neng- xing-ke-du-chi)
* PCB component packaging ruler, Mobyw, [https://oshwhub.com/Mobyw/PCByuan-jian-feng-zhuang-chi](https://oshwhub.com/Mobyw/PCByuan- jian-feng-zhuang-chi)
* Line width current encapsulation equipment forget ruler, prism, [https://oshwhub.com/prism/PCBchi-zi](https://oshwhub.com/prism/PCBchi-zi)
* Lichuang EDA ruler (PCB ruler), OSHWHub open source hardware, [https://oshwhub.com/OSHWHubkai-yuan-ying-jian/li-chuangeda-chi-zi](https://oshwhub.com/OSHWHubkai- yuan-ying-jian/li-chuangeda-chi-zi)
