#The 7th Lichuang Electric Competition# Exquisite and useful USB ammeter

Overview

Note: * is a required field,
please fill it out during the registration stage↓

* 1. Project function introduction:

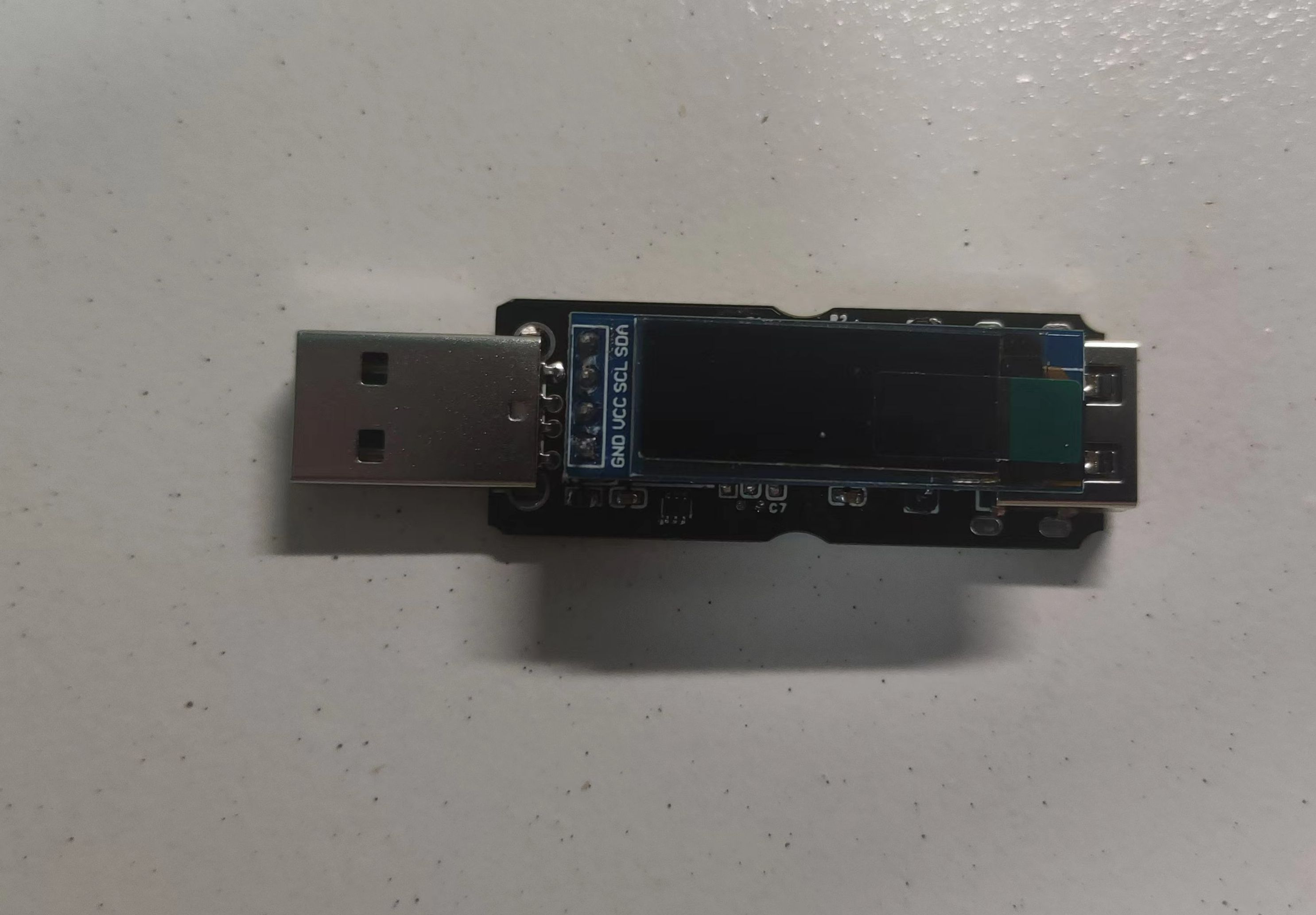

A USB ammeter made based on the National Technology N32G430C8L7 chip + INA199, with an accuracy of 1%. It can check the voltage, current and power when the USB is working.

*2. The project attributes
are made public for the first time and are open source.

*3. The open source agreement
cannot be used commercially without my permission.

*4. Hardware part: Main
control part :
Note: According to the official schematic, pin 1 needs to be connected to an external 4.7uf capacitor. Use software IIC
sampling circuit. The current sampling
chip is INA199A1 26V, bidirectional, zero drift, low side/high side, voltage output shunt monitor (accuracy is OK)

*5. Software part:

Keil development: Note that the pin source code of IIC is in the attachment

*6.
Please enter the content of the BOM list...

*7. Competition LOGO verification

*8. Demonstrate your project and record it as a video and upload it

Design Files
