newrudeman

USBuino-UNO

Overview

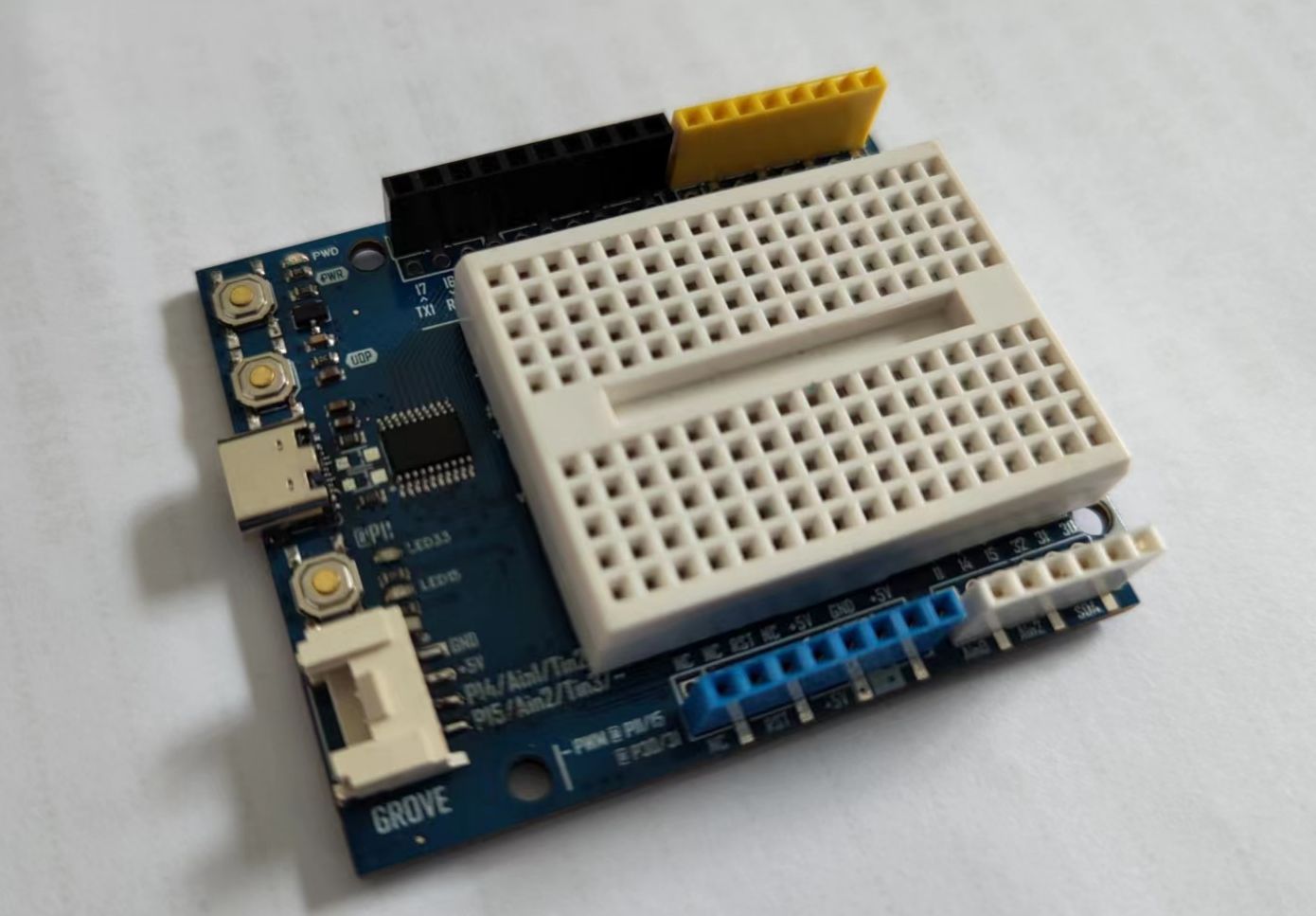

No-plug download~ Press and hold the PWD and UDP buttons at the same time, release the PWD button first, then release the UDP button! There are 3 LED indicators on the board for easy debugging. There is 1 user button on the board. The QR code and the simplest test code are screen-printed. There is a Grove interface on the board. There is a five-way touch button on the back. The pad space is large and can be placed. A small breadboard is put in
and the breadboard is removed. It looks like this.
The five-way key on the back is covered by the silk screen. It can only be simulated in 3D.

WeChat picture_20220724170209.jpg

WeChat picture_20220724170219.jpg

WeChat picture_20220724170456.jpg

WeChat picture_20220724171052.png

WeChat picture_20220724171056.png

WeChat picture_20220724171105.png

BOM download

PCB_USBuino-UNO_2022-09-27.pdf

PCB_USBuino-UNO_2022-09-27.json

USBuino-UNO_2022-09-27.pcbdoc

Gerber_USBuino-UNO.zip

Schematic_USBuino-UNO_2022-09-27.pdf

SCH_USBuino-UNO_2022-09-27.json

USBuino-UNO_2022-09-27.schdoc

61063

electronic

Design Files
