32 core board

Overview

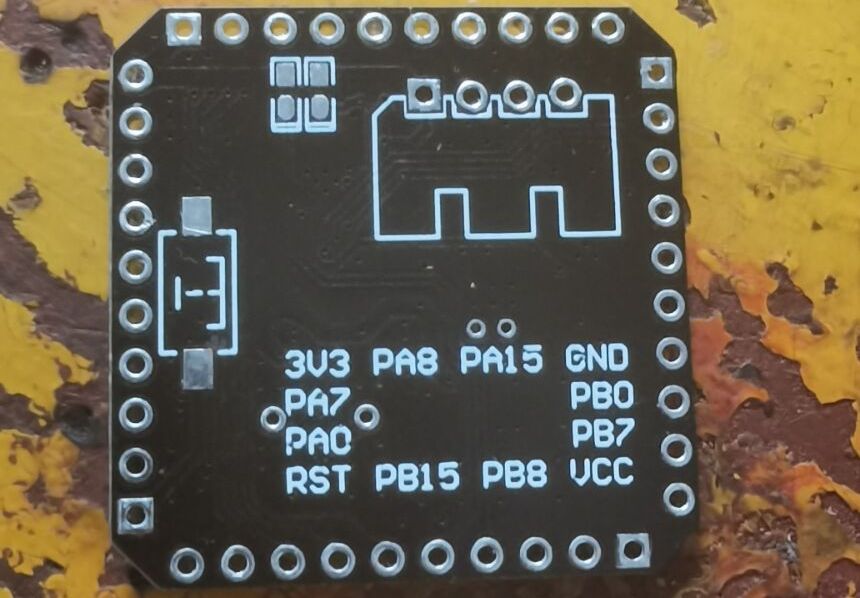

32 microcontroller core board, compatible with a series of lqfp48 microcontrollers such as stm32f103c8t6, stm32f103c6t6, air32f103cbt6, etc., with two onboard LEDs (one power supply, the other PC13) with reserved crystal oscillator positions, onboard 5v-3.3v voltage reduction, reset button, and debugging interface It is an xh terminal (not the standard xh, I thought it could be stuck directly but it was of no use). The two pins on the corners are the same pin and are only marked once on the back.
