ElectronBot_servodrive

Overview

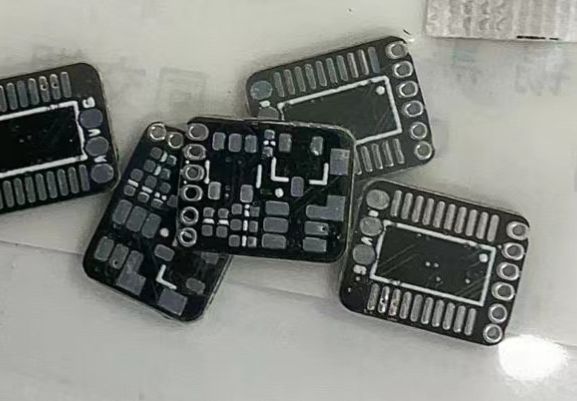

Since the original pad is too small and easy to fall off, I made a slight change to facilitate soldering. It has been verified that it can be used. I will share it to facilitate everyone's board making. To avoid using the GER file directly, Jiali Chuanghui will say that there is suspicion of ordering. Just slightly change the text silk screen.
