STC Oscilloscope Pen-Battery Version (Third Party Version)

Overview

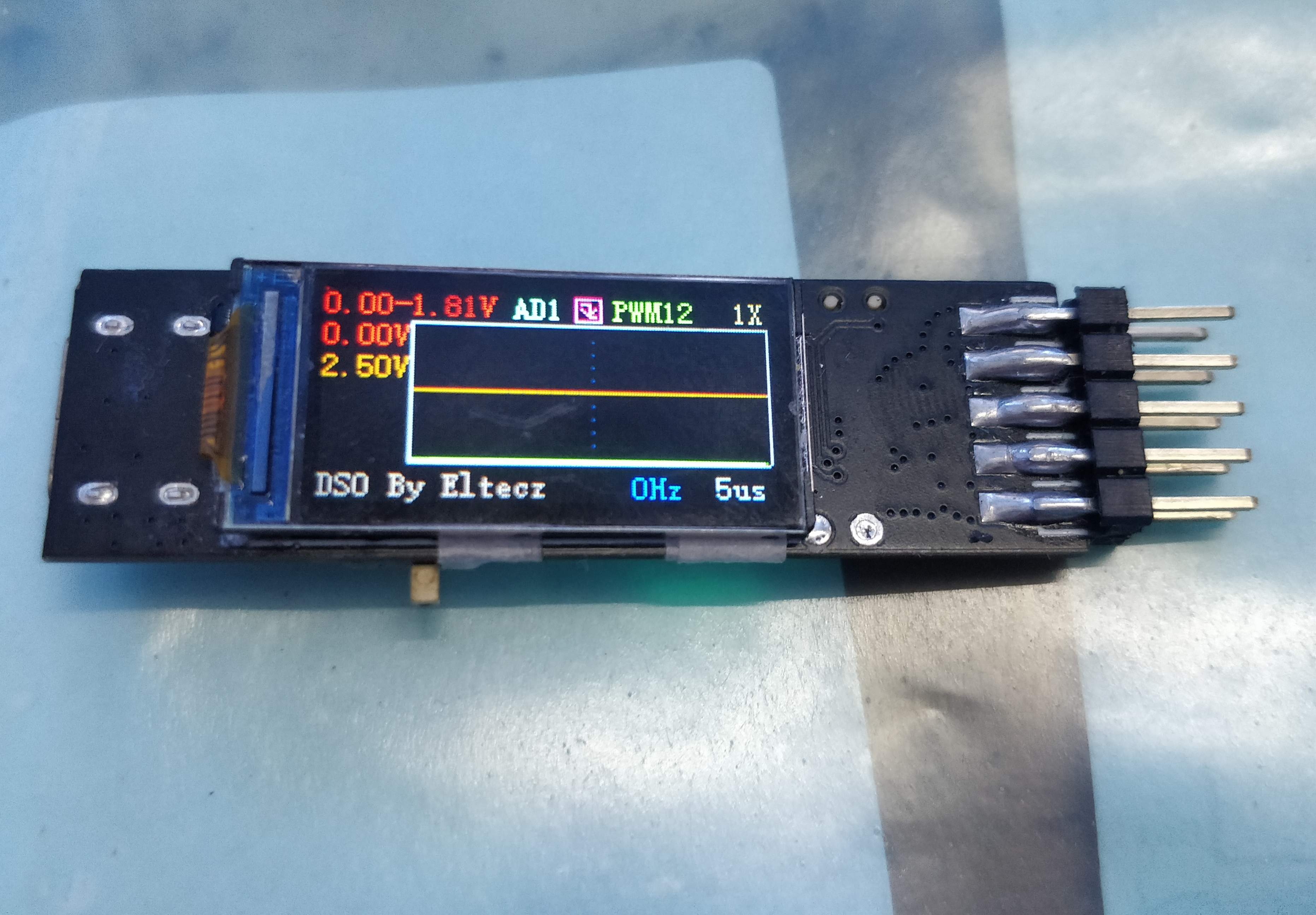

The STC oscilloscope pen cloned from Eltecz
added a battery, and the screen was replaced with a more easily found ordinary fpc soldered screen.
Remember to short the voltage below and select the shorting point. Short it according to your needs. Change the charging current according to the selected battery.
Draw a few vias according to the feeling of the RF line and divide the ground. I don't know if it is right.
